Throttle Position (TP) Sensor - 2.3L Removal/Installation

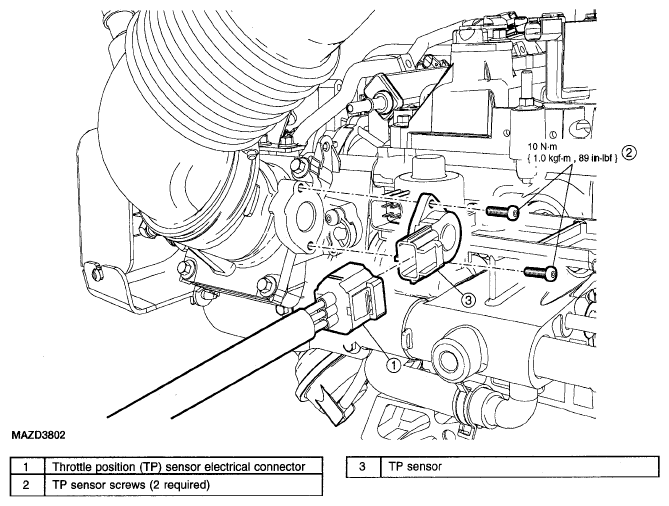

Fig 1: Throttle Position (TP) Sensor With Torque Specifications -- 2.3L Replacement Components

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the throttle position (TP) sensor electrical connector.
2. Remove the 2 screws and the TP sensor.
   • To install, tighten to 10 Nm {1.0 kgf.m, 89 in.lbf}.
3. To install, reverse the removal procedure.
