Navigation Display: Service and Repair

CAR-NAVIGATION UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation

b. Front scuff plate Front Scuff Plate Removal/Installation

c. Front side trim Front Side Trim Removal/Installation

d. Glove compartment Service and Repair

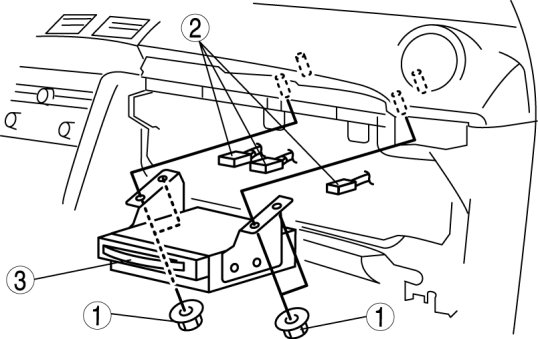

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
