Programming and Relearning

BRAKE FLUID PRESSURE SENSOR INITIALIZATION PROCEDURE

WARNING:
- If the initialization procedure is not completed, the DSC will not operate properly and it might cause an unexpected accident. Therefore, after replacing or removing the DSC HU/CM, make sure to perform the initialization procedure to insure proper DSC operation.

1. Turn the ignition switch off.

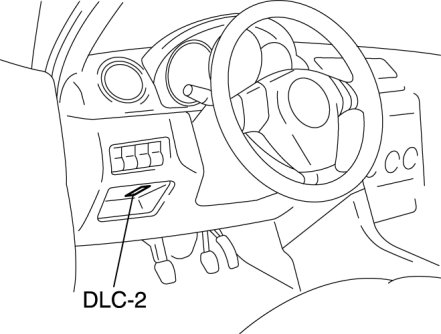

2. Connect the M-MDS to the DLC-2.






3. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

- When using the IDS (laptop PC)

- Select "Chassis".
- Select "ABS/DSC".
- Select "Sensor Initialization".

- When using the PDS (Pocket PC)

1 Select "Module Tests".
2 Select "ABS".
3 Select "DataLogger".
4 Select "MCYL_S_CAL".

4. Perform the initialization procedure according to the directions on the screen.

5. Drive the vehicle.

6. After 5 min or more of driving, verify that the DSC system is normal.
