Air Duct: Service and Repair

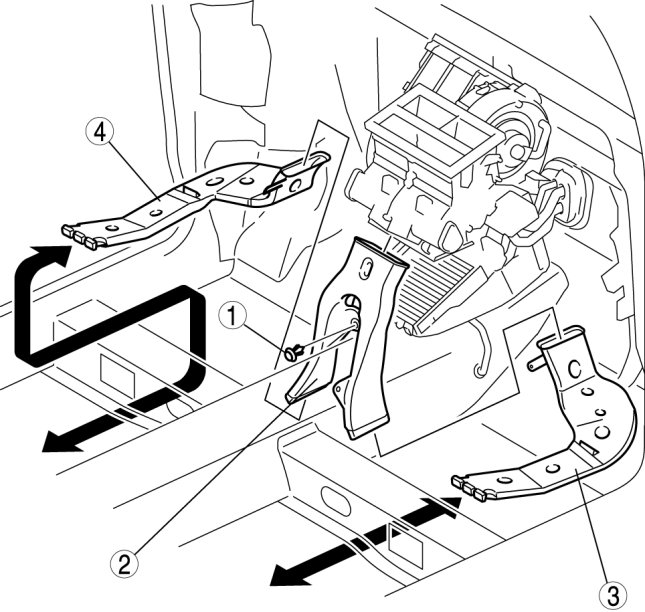

REAR HEAT DUCT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front seat Front Seat Removal/Installation

b. Audio amplifier (Bose(R)) Service and Repair

c. Woofer (Bose(R)) Woofer Removal/Installation

d. Front scuff plate Front Scuff Plate Removal/Installation

e. Console Removal and Replacement

f. Front side trim Front Side Trim Removal/Installation

g. Rear scuff plate Rear Scuff Plate Removal/Installation

h. B-pillar lower trim B-Pillar Lower Trim Removal/Installation

i. Lower anchor of the front seat belt Front Seat Belt Removal/Installation

j. Tire house trim Tire House Trim Removal/Installation

k. Fuel-filler lid opener lever cover Service and Repair

l. Floor covering Service and Repair

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
