Abs HU/Cm Removal/Installation: Notes
CAUTION:
- When replacing the ABS HU/CM, the configuration procedure must be done before removing the ABS HU/CM. If the configuration is not completed before removing the ABS HU/CM, ABS will not work properly after installation of the ABS HU/CM.
- Do not separate the ABS HU and ABS CM unless replacing them, otherwise the ABS HU/CM may not function properly. When replacing them with new ones, always perform procedures according to the instructions included with the new parts.
- The internal parts of the ABS HU/CM could be damaged if dropped. Be careful not to drop the ABS HU/CM. Replace the ABS HU/CM if it is subjected to an impact.
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [LF, L3] .)
- Remove the reserve hose. (MTX) (See MASTER CYLINDER REMOVAL/INSTALLATION [LF, L3] .) (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION .)

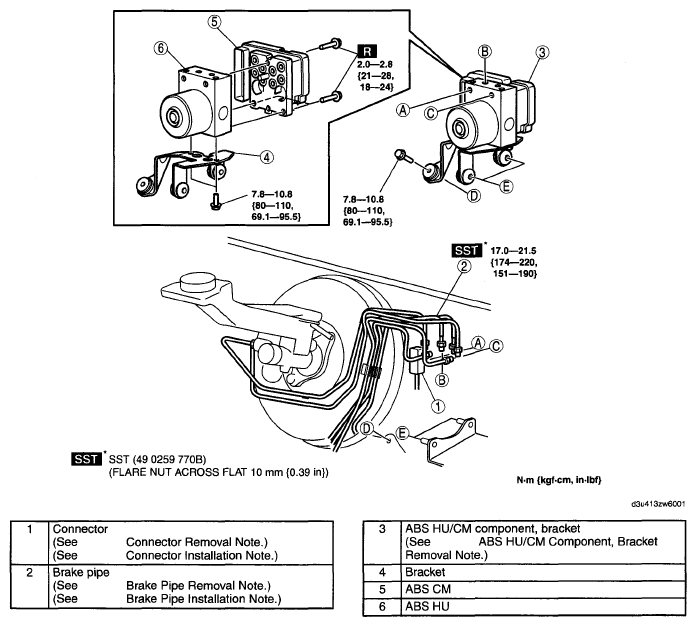

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Configure the ABS HU/CM (only when replacing it). (See ABS CONFIGURATION ).
