Navigation Display: Service and Repair

CAR-NAVIGATION UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Side wall Side Wall Removal/Installation

b. Front console Front Console Removal/Installation

c. Climate control unit Climate Control Unit Removal/Installation [Full-Auto Air Conditioner]

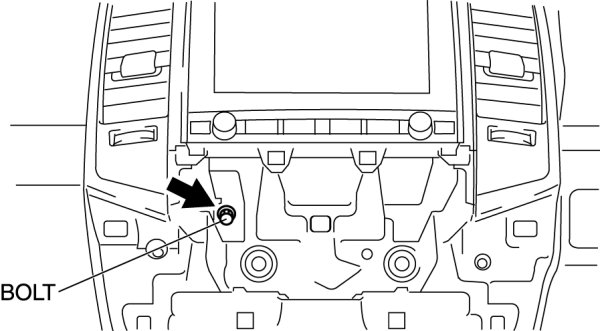

3. Remove the car-navigation unit installation bolt.






Tightening torque
- 8-10 Nm {80-110 kgf-cm, 70-95 in-lbf}

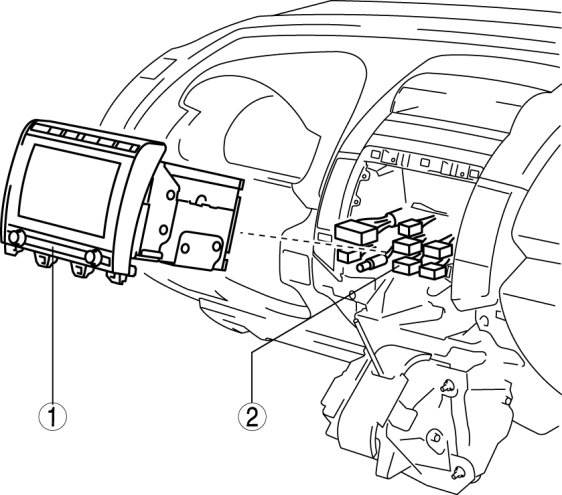

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
