EGR Valve: Service and Repair

EGR VALVE REMOVAL/INSTALLATION [L3]

1. Remove the plug hole plate. Service and Repair

2. Remove the battery cover. Removal and Replacement

3. Disconnect the negative battery cable.

4. Disconnect the EGR valve connector.

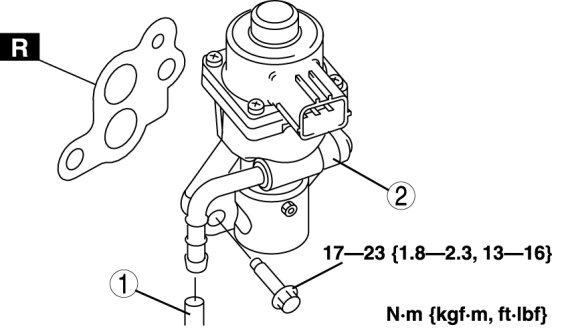

5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.

Water Hose Removal Note

1. Drain the engine coolant from the radiator. Service and Repair

EGR Valve Removal Note

1. Remove the air cleaner and air hose. Service and Repair

2. Remove the radiator hose (upper). Service and Repair
