Washer Fluid Level Switch: Service and Repair

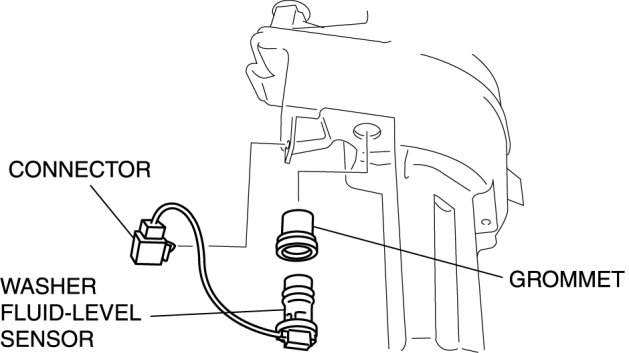

WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the washer tank. (See Service and Repair)

3. Disconnect the connector.






4. Remove the washer fluid-level sensor.

5. Remove the grommet.

6. Install in the reverse order of removal.
