Windshield Washer Switch: Testing and Inspection

WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

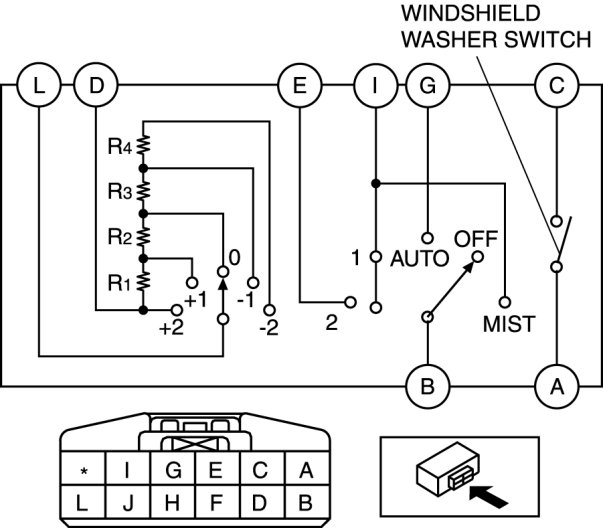

Vehicles With Auto Wiper System

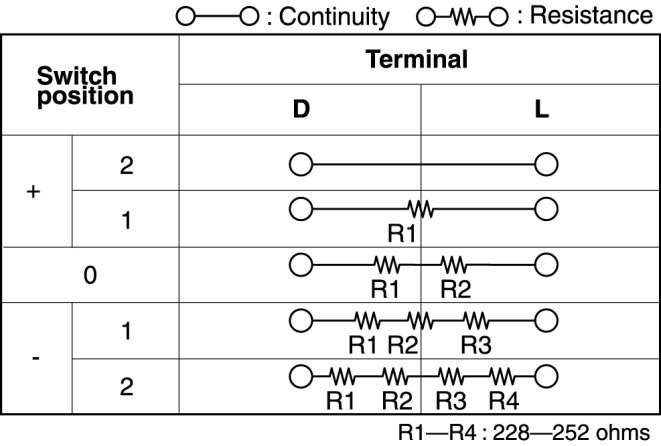

1. Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.






- If not as indicated in the table, replace the windshield wiper and washer switch.

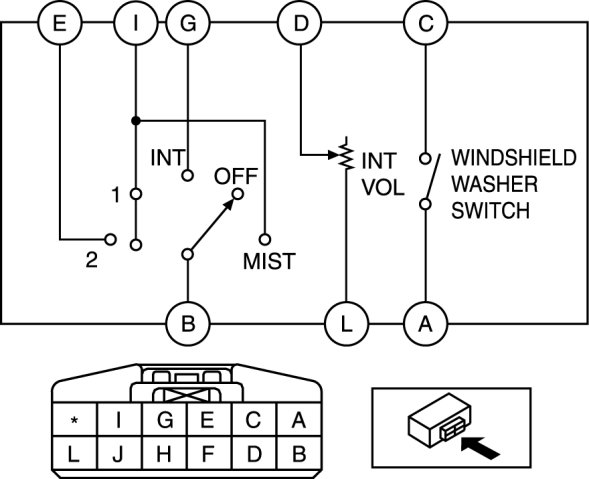

Vehicles Without Auto Wiper System

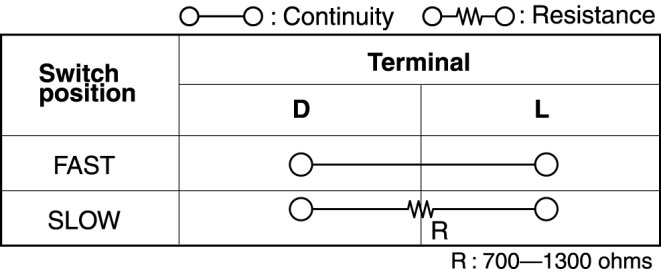

Wiper switch with INT volume switch

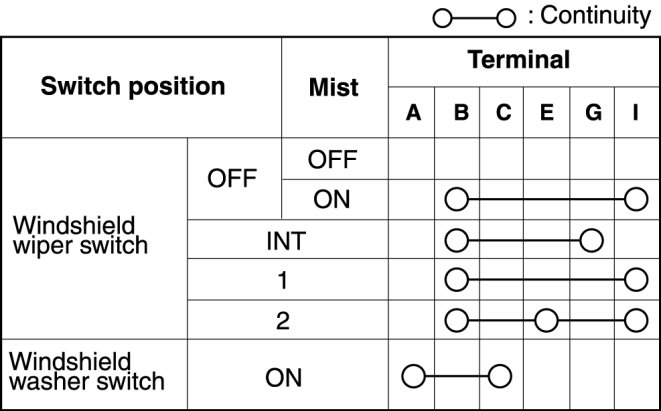

1. Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.






- If not as indicated in the table, replace the windshield wiper and washer switch.
