Control System Location Index [L3]

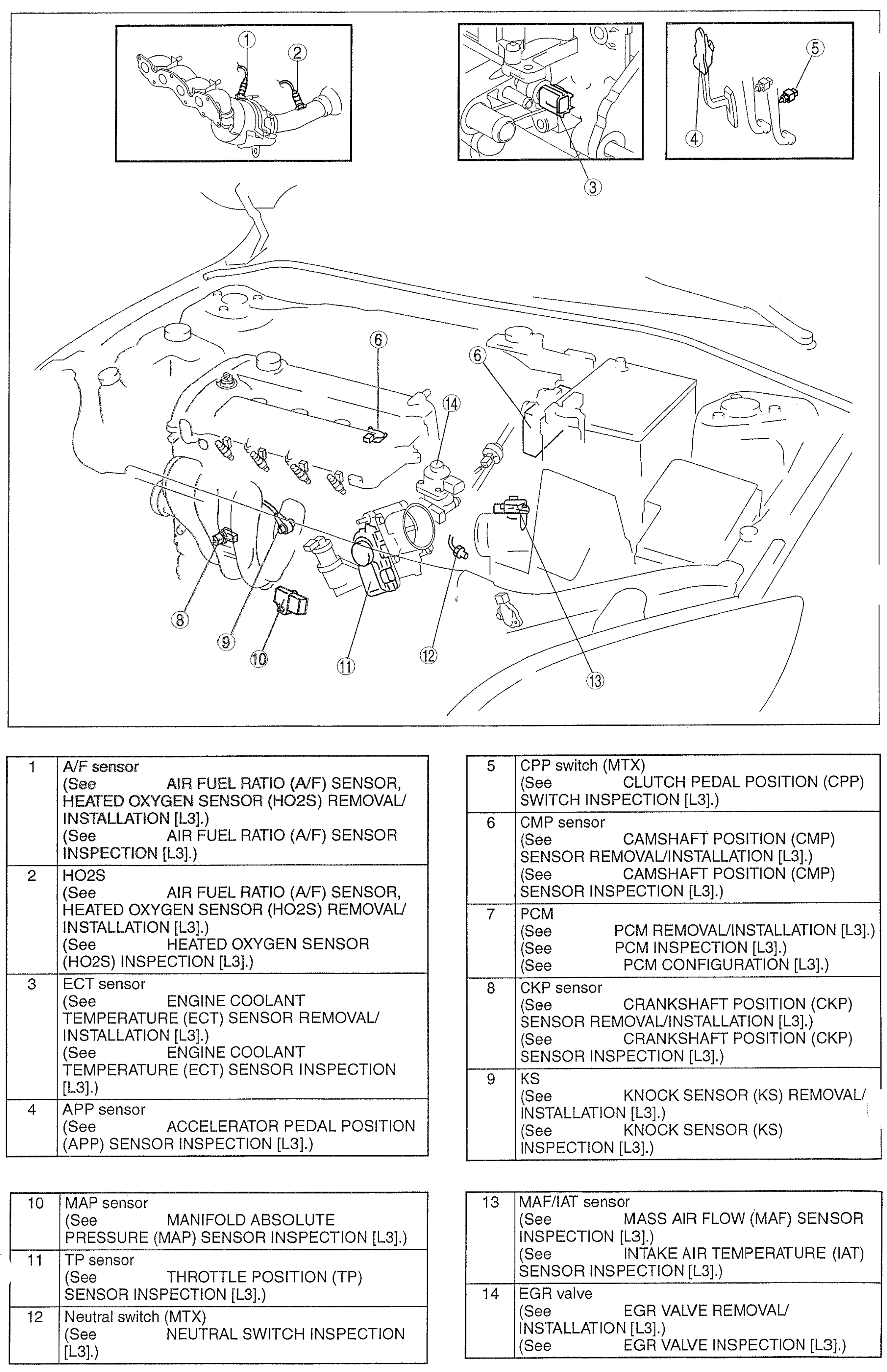

Fig 1: Identifying Control System Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
