Center Panel Module Removal/Installation: Notes
- Disconnect the negative battery cable.
- Remove the side wall. (See
SIDE WALL REMOVAL/INSTALLATION
.)
- Remove the front console. (See
FRONT CONSOLE REMOVAL/INSTALLATION
.)

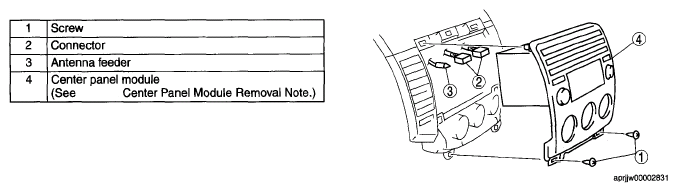

- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
CAUTION:
- When installing the center panel module, make sure that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the wiring harness or the antenna feeder is caught between the unit and dashboard, it may cause malfunctions.
