Body Control Module (BCM) Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  2. Disconnect the negative battery cable.
  3. Remove the passenger-side under cover.
  4. Remove in the order indicated in the table.

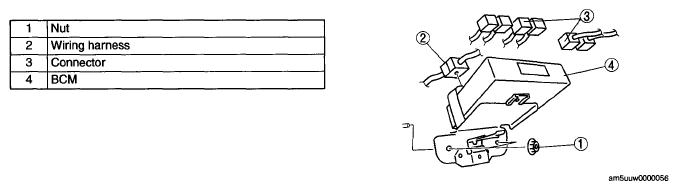

    Fig 1: Identifying Body Control Module Components
    G05545957Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
