Power Outer Mirror Switch Inspection

  1. Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.
    • If not as indicated in the table, replace the power outer mirror switch.
      Fig 1: Continuity Chart
      G05545725Courtesy of MAZDA MOTORS CORP.

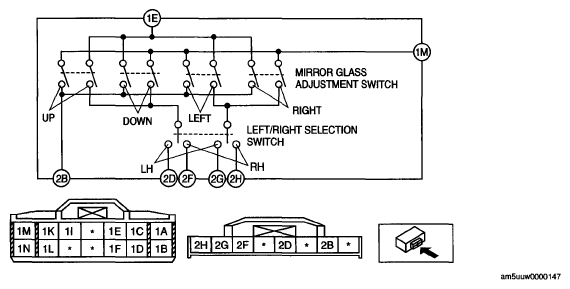

      Fig 2: Power Outer Mirror Switch - Circuit Diagram
      G05545726Courtesy of MAZDA MOTORS CORP.
