DTC P2004 [L3]: Notes

DTC P2004 (L3) DETECTION CONDITION & POSSIBLE CAUSES

DTC P2004	Variable tumble shutter valve stuck open
DETECTION CONDITION	PCM monitors mass the variable tumble shutter valve position using the variable tumble position sensor. If PCM turns the variable tumble solenoid valve on but the variable tumble position still remain open for 5s (the variable tumble position sensor off), PCM determines that the variable tumble shutter valve has been stuck open. Diagnostic support note This is a continuous monitor (CCM). MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM. PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA is available. The DTC is stored in the PCM memory.
POSSIBLE CAUSE	Variable tumble shutter valve switch connector or terminal malfunction Variable tumble solenoid valve connector or terminal malfunction Open circuit in wiring harness between the variable tumble shutter valve switch terminal C and the PCM terminal 2AE Short to power in wiring harness between the variable tumble shutter valve switch terminal C and the PCM terminal 2AE PCM connector or terminal malfunction Variable tumble solenoid valve malfunction Variable tumble shutter valve actuator malfunction (stuck open) Variable tumble shutter valve switch malfunction Open circuit in wiring harness between the variable tumble solenoid valve terminal B and the PCM terminal 2I Short to power in wiring harness between the variable tumble solenoid valve terminal B and the PCM terminal 2I Miss connecting or pull out the vacuum hose PCM malfunction

DTC P2004

Variable tumble shutter valve stuck open

DETECTION CONDITION

PCM monitors mass the variable tumble shutter valve position using the variable tumble position sensor. If PCM turns the variable tumble solenoid valve on but the variable tumble position still remain open for 5s (the variable tumble position sensor off), PCM determines that the variable tumble shutter valve has been stuck open.

Diagnostic support note

This is a continuous monitor (CCM).
MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
FREEZE FRAME DATA is available.
The DTC is stored in the PCM memory.

POSSIBLE CAUSE

Variable tumble shutter valve switch connector or terminal malfunction
Variable tumble solenoid valve connector or terminal malfunction

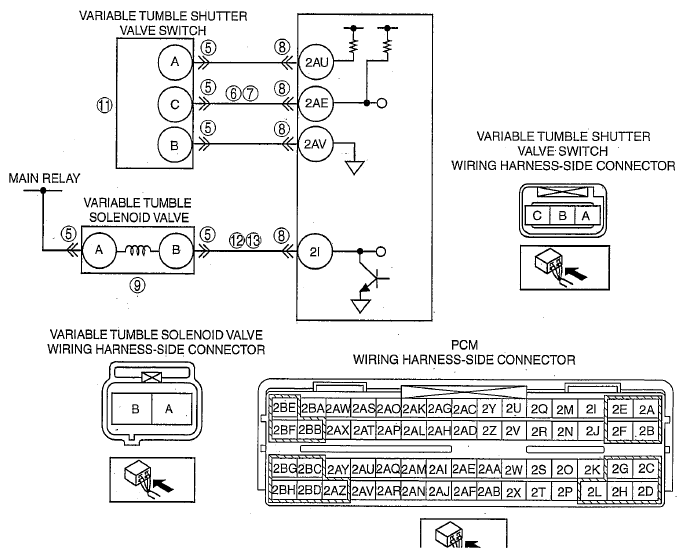

Open circuit in wiring harness between the variable tumble shutter valve switch terminal C and the PCM terminal 2AE
Short to power in wiring harness between the variable tumble shutter valve switch terminal C and the PCM terminal 2AE
PCM connector or terminal malfunction
Variable tumble solenoid valve malfunction
Variable tumble shutter valve actuator malfunction (stuck open)
Variable tumble shutter valve switch malfunction
Open circuit in wiring harness between the variable tumble solenoid valve terminal B and the PCM terminal 2I
Short to power in wiring harness between the variable tumble solenoid valve terminal B and the PCM terminal 2I
Miss connecting or pull out the vacuum hose
PCM malfunction
