TCS Off Switch Removal/Installation

TCS OFF SWITCH REMOVAL/INSTALLATION

1. Remove the following parts:
a. Front scuff plate (driver-side) Front Scuff Plate Removal/Installation

b. Front side trim (driver-side) Front Side Trim Removal/Installation

c. Upper panel Upper Panel Removal/Installation

d. Decoration panel (driver-side) Decoration Panel Removal/Installation

e. Hood release lever Service and Repair

f. Meter hood Meter Hood Removal/Installation

g. Lower panel (driver-side) Lower Panel Removal/Installation

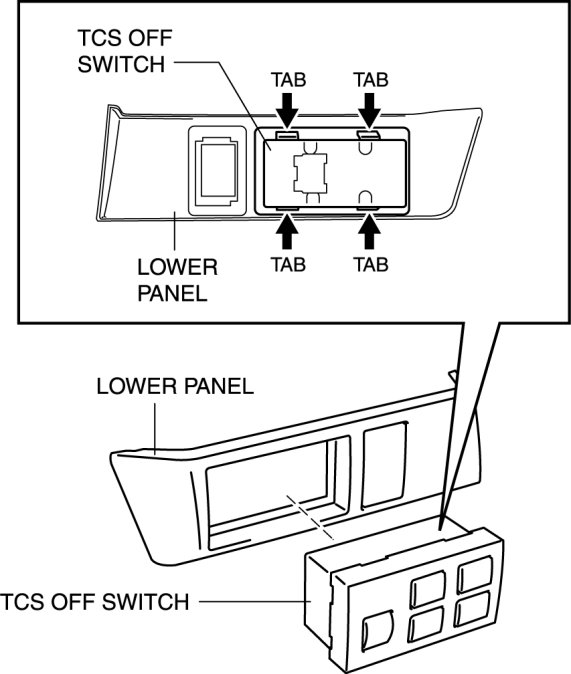

2. Press the tabs.






3. Remove the TCS OFF switch.

4. Install in the reverse order of removal.
