Map Light: Testing and Inspection

MAP LIGHT INSPECTION

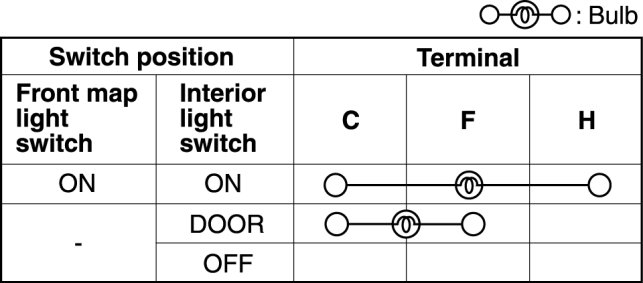

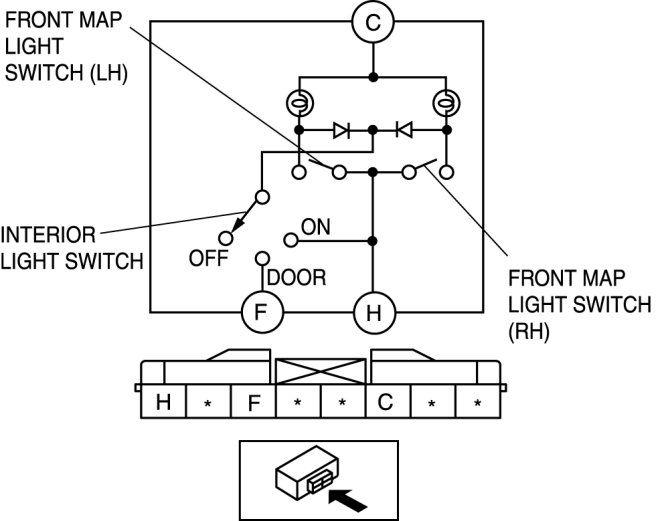

1. Verify that the continuity between the map light terminals is as indicated in the table.






- If not as indicated in the table, replace the map light.
