Electronic Throttle Actuator: Testing and Inspection

THROTTLE BODY INSPECTION [L5]

Resistance Inspection

1. Disconnect the negative battery cable.

2. Disconnect the throttle body connector.

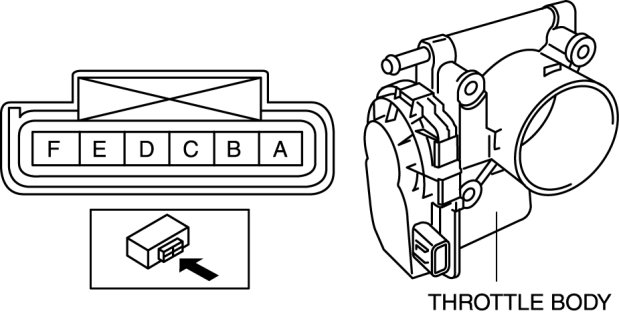

3. Measure the resistance between throttle body terminals E and F.

- If not as specified, replace the throttle body. Service and Repair
Specification
