Flywheel: Testing and Inspection

FLYWHEEL INSPECTION

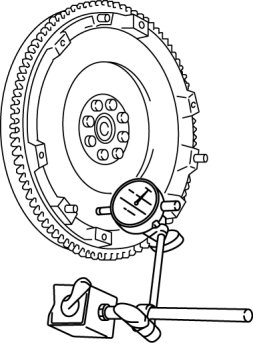

1. Install a dial gauge on the cylinder block.

2. Measure the flywheel runout using a dial gauge.






- If the runout is excessive, replace the flywheel.

Flywheel runout limit
- 0.1 mm {0.004 in}
