Pcm Removal/Installation [L5]
- Disconnect the negative battery cable.
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L5] .)

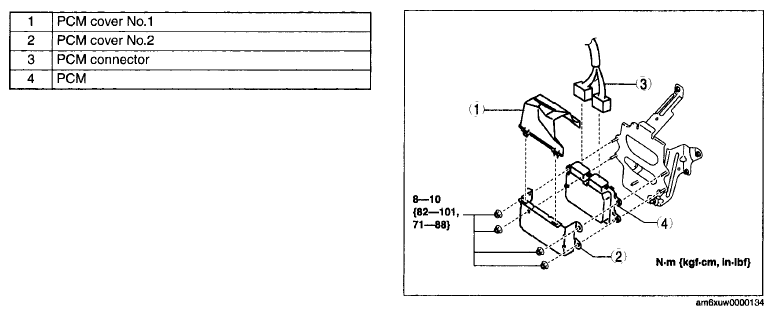

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- When replacing the PCM on the vehicles, perform the following:
- PCM configuration (See PCM CONFIGURATION [L5] .)
- Immobilizer system component replacement/key addition and clearing (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [KEYLESS ENTRY SYSTEM] .) (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
