Ignition Switch Removal/Installation [Without Advanced Keyless Entry And Push Button Start System]

1. Disconnect the negative battery cable.
2. Remove the column cover. See COLUMN COVER REMOVAL/INSTALLATION .
3. Pull the pin in the direction of the arrow shown in the figure and release the lock.
4. Disconnect the connector.

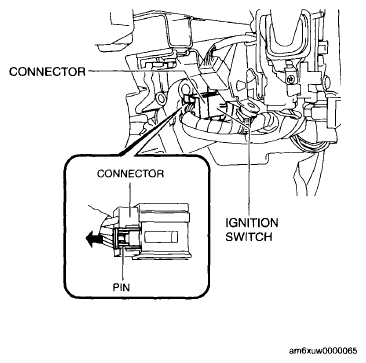

   Fig 1: Identifying Ignition Switch And Connector

   Courtesy of MAZDA MOTORS CORP.
5. Remove the screw.

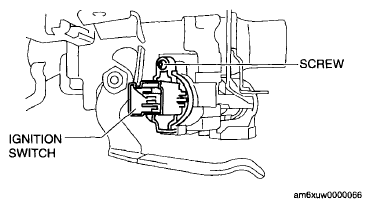

   Fig 2: Identifying Ignition Switch And Screw

   Courtesy of MAZDA MOTORS CORP.
6. Remove the tabs.
7. Install in the reverse order of removal.

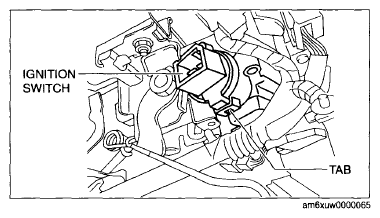

Fig 3: Identifying Ignition Switch And Tab

Courtesy of MAZDA MOTORS CORP.
