Key Reminder Switch Inspection [Without Advanced Keyless Entry And Push Button Start System]

Disconnect the negative battery cable.
Remove the column cover. See COLUMN COVER REMOVAL/INSTALLATION .
Disconnect the key reminder switch connector.

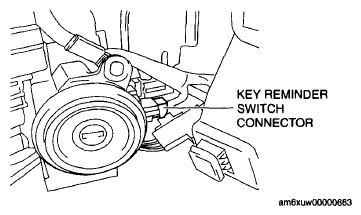

Fig 1: Identifying Key Reminder Switch Connector Location
Courtesy of MAZDA MOTORS CORP.
Verify that the continuity between the key reminder switch terminals is as indicated in the table.
- If not as indicated in the table, replace the key reminder switch.

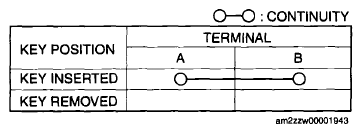

Fig 2: Key Position Terminal Chart
Courtesy of MAZDA MOTORS CORP.

Fig 3: Identifying Key Reminder Switch Connector Terminal
Courtesy of MAZDA MOTORS CORP.
