Key Reminder Switch Removal/Installation [Without Advanced Keyless Entry And Push Button Start System]

1. Disconnect the negative battery cable.
2. Remove the column cover. See COLUMN COVER REMOVAL/INSTALLATION .
3. Disconnect the key reminder switch connector.

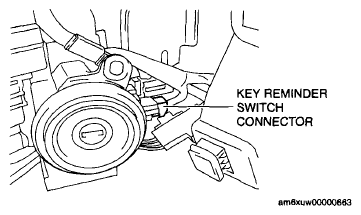

   Fig 1: Identifying Key Reminder Switch Connector Terminal

   Courtesy of MAZDA MOTORS CORP.
4. Detach the key reminder switch tab.
5. Remove the key reminder switch.
6. Install in the reverse order of removal.

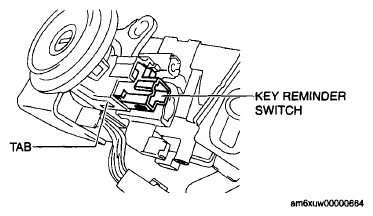

Fig 2: Identifying Key Reminder Switch

Courtesy of MAZDA MOTORS CORP.
