Power System Location Index [Without Advanced Keyless Entry And Push Button Start System]

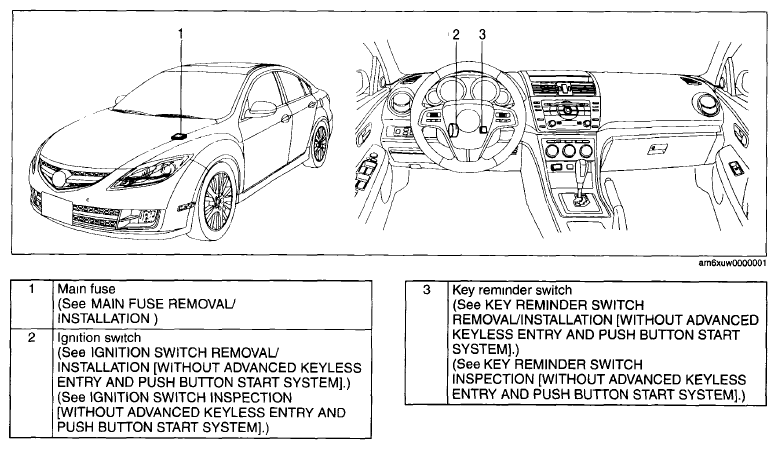

Fig 1: Identifying Power System Part Location
G06205730Courtesy of MAZDA MOTORS CORP.
