Push Button Start Removal/Installation [With Advanced Keyless Entry And Push Button Start System]

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
    2. Decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
    3. Shift knob (MTX). See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .
    4. Shift panel. See SHIFT PANEL REMOVAL/INSTALLATION .
    5. Center panel lower. See CENTER PANEL LOWER REMOVAL/INSTALLATION .
  3. Release the tabs and remove the push button start from the center panel lower.

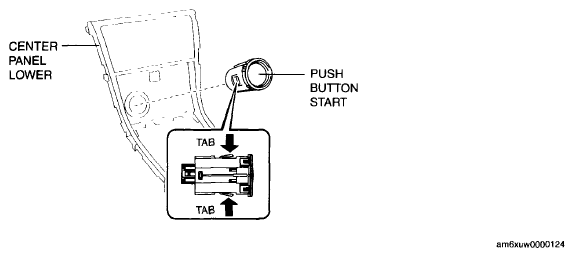

    Fig 1: Identifying Center Panel Lower And Push Button Start
    G06205742Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
