Relay Block Removal/Installation [With Advanced Keyless Entry And Push Button Start System]

1. Disconnect the negative battery cable
2. Remove the lower panel. See LOWER PANEL REMOVAL/INSTALLATION .
3. Remove the knee bolster See KNEE BOLSTER REMOVAL/INSTALLATION .
4. Remove the wiring harness clip
5. Remove the clips

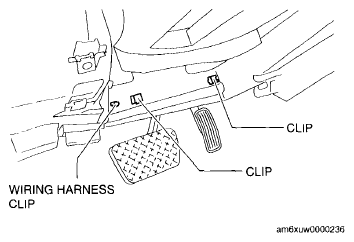

   Fig 1: Identifying Wiring Harness Clip And Clips

   Courtesy of MAZDA MOTORS CORP.
6. Remove the relay block

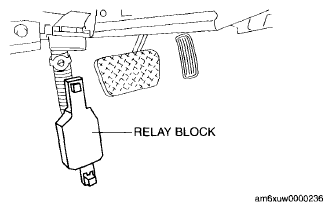

   Fig 2: Identifying Relay Block

   Courtesy of MAZDA MOTORS CORP.
7. Disconnect the connectors
8. Install in the reverse order of removal.

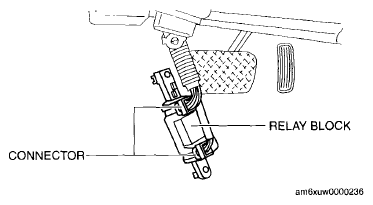

Fig 3: Identifying Relay Block And Connector

Courtesy of MAZDA MOTORS CORP.
