Two-step Down Function Operative/Non-operative Switching

NOTE:

By following the procedure below, the two-step down function is switched to non-operative when it is operative, and to operative when it is non-operative.

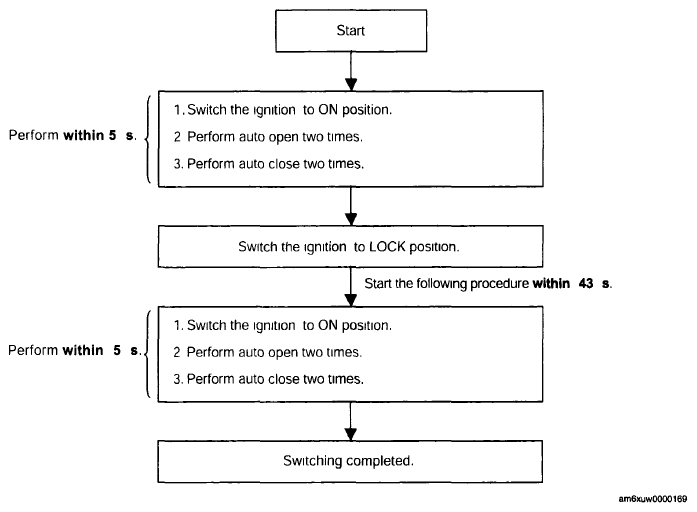

Fig 1: Two-Step Down Function Operative/Non-Operative Switching Setting Procedure Flow Chart
Courtesy of MAZDA MOTORS CORP.

Mazda Modular Diagnostic System (M-MDS) display	Function	initial Setting	Setting Content	Control Unit
-	Two-step down function can be set to inoperable.	Enabled	Disabled/Enabled	Power window main switch
