Connector Terminal Check Method

  1. Inspect the connection condition of each female terminal.
  2. Insert the male terminal into the female terminal to inspect for looseness.

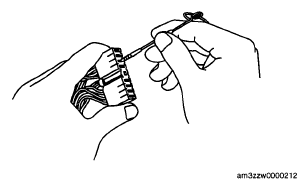

    Fig 1: Identifying Connector Terminal Check Method
    G05985739Courtesy of MAZDA MOTORS CORP.
