Power Window Main Switch

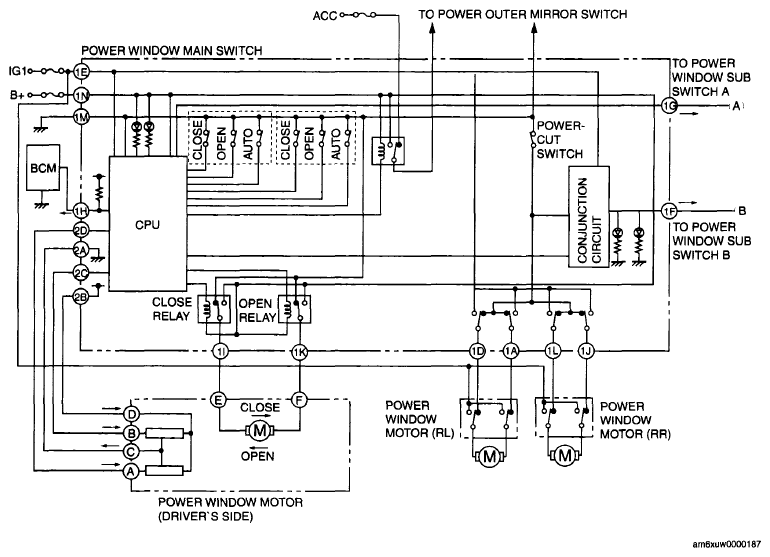

Fig 1: Power Window Main Switch Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
