Boot Band Assembly Note

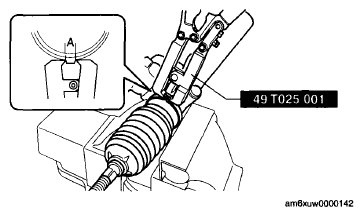

- Crimp the boot band using the SST .
- Verify that width A of the crimp is within the specification
- If width A of the crimp exceeds the specification, reduce opening width A of the SST and recrimp the boot band.
- If width A of the crimp is less than the specification, increase opening width A of the SST and crimp a new boot band.
Standard Width A
2-3 mm {0.08-0.11 in}
- Rotate the boot by hand and verify that it is securely assembled with the boot band.
