Steering Lock Component, Steering Lock Mounting Bolt Installation Note

  1. Assemble section A of the steering lock component to the section B of the steering shaft.

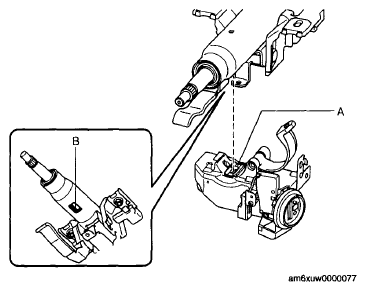

    Fig 1: Identifying Assemble Section Position Of Steering Lock Component
    G06200220Courtesy of MAZDA MOTORS CORP.
  2. Set the set cover to the steering shaft and then temporarily install the steering lock component to the steering shaft using a new steering lock mounting bolt.

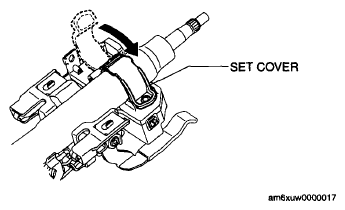

    Fig 2: Attaching Set Cover To Steering Shaft
    G06200221Courtesy of MAZDA MOTORS CORP.
  3. Tighten the steering lock mounting bolt until the head breaks off.

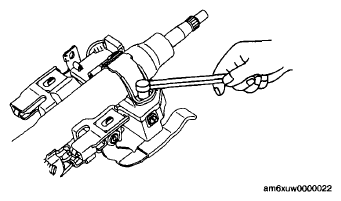

    Fig 3: Tightening Steering Lock Mounting Bolt
    G06200222Courtesy of MAZDA MOTORS CORP.
