Power Mirror Switch: Service and Repair

EXTERIOR MIRROR CONTROL SWITCH

Removal and Installation

1. Remove the front door trim panel. See - Door Trim Panel - Front.

2. Remove the interior door handle trim panel.





- Lift the interior door handle trim panel upward to release the interior door handle trim panel retaining clips.

3.

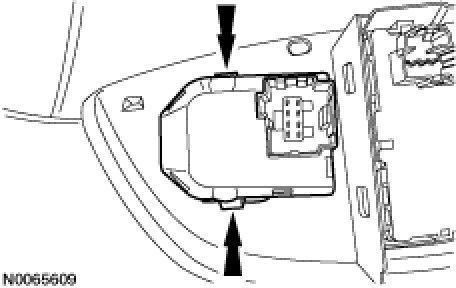

Remove the exterior mirror control switch.

- Disconnect the electrical connector.
- Press the 2 exterior mirror control switch retaining tabs.
- Remove the exterior mirror control switch from the interior door handle trim panel.

4. To install, reverse the removal procedure.
