Receiver Dryer: Service and Repair

A/C RECEIVER / DRIER REMOVAL / INSTALLATION

1. Recover the refrigerant. See A/C Refrigerant System Tests.

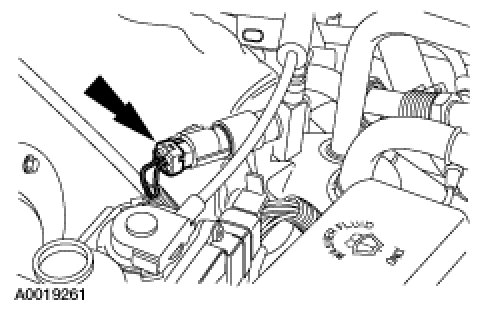

2. Disconnect the A/C cycling switch electrical connector.






3.

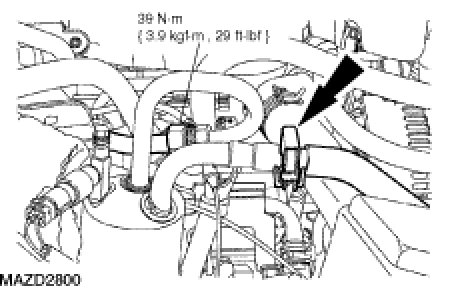

CAUTION:Use a back-up wrench to prevent damage to the tubes.Disconnect the suction accumulator refrigerant lines. See Description and Operation.

- Discard the O-ring seals.

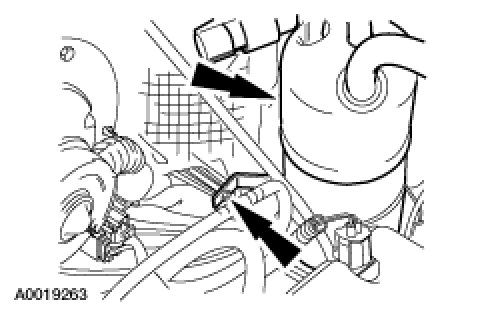

4. Remove the three suction accumulator bracket screws and the suction accumulator.






5. To install, reverse the removal procedure.

- If a new suction accumulator is to be installed, transfer the A/C cycling switch to the new suction accumulator.

- Lubricate the refrigerant system with the correct amount of clean refrigerant oil. See A/C Refrigerant Oil Addition.
- Install new O-ring seals lubricated in clean refrigerant oil.

6. Evacuate, leak test, and charge the refrigerant system. See A/C Refrigerant System Tests.
