Fuel Tank Pressure Sensor: Service and Repair

FUEL TANK PRESSURE SENSOR REMOVAL / INSTALLATION

1. With the vehicle in NEUTRAL, position it on a hoist. See Lifting.

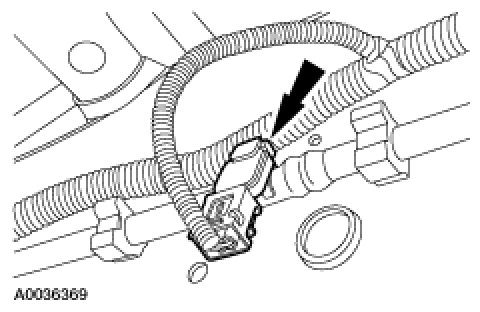

2. Disconnect the electrical connector.






3.
NOTE:A new vapor line assembly must be installed for a new pressure sensor to be installed.Remove the fuel tank pressure sensor and fuel line assembly.

4. To install, reverse the removal procedure.

- Perform Leak Test. See Component Tests and General Diagnostics.
- Perform the Evaporative Emission Running Loss Monitor Repair Verification Drive Cycle Test. See Drive Cycles.
