Power Steering Pressure Switch: Testing and Inspection

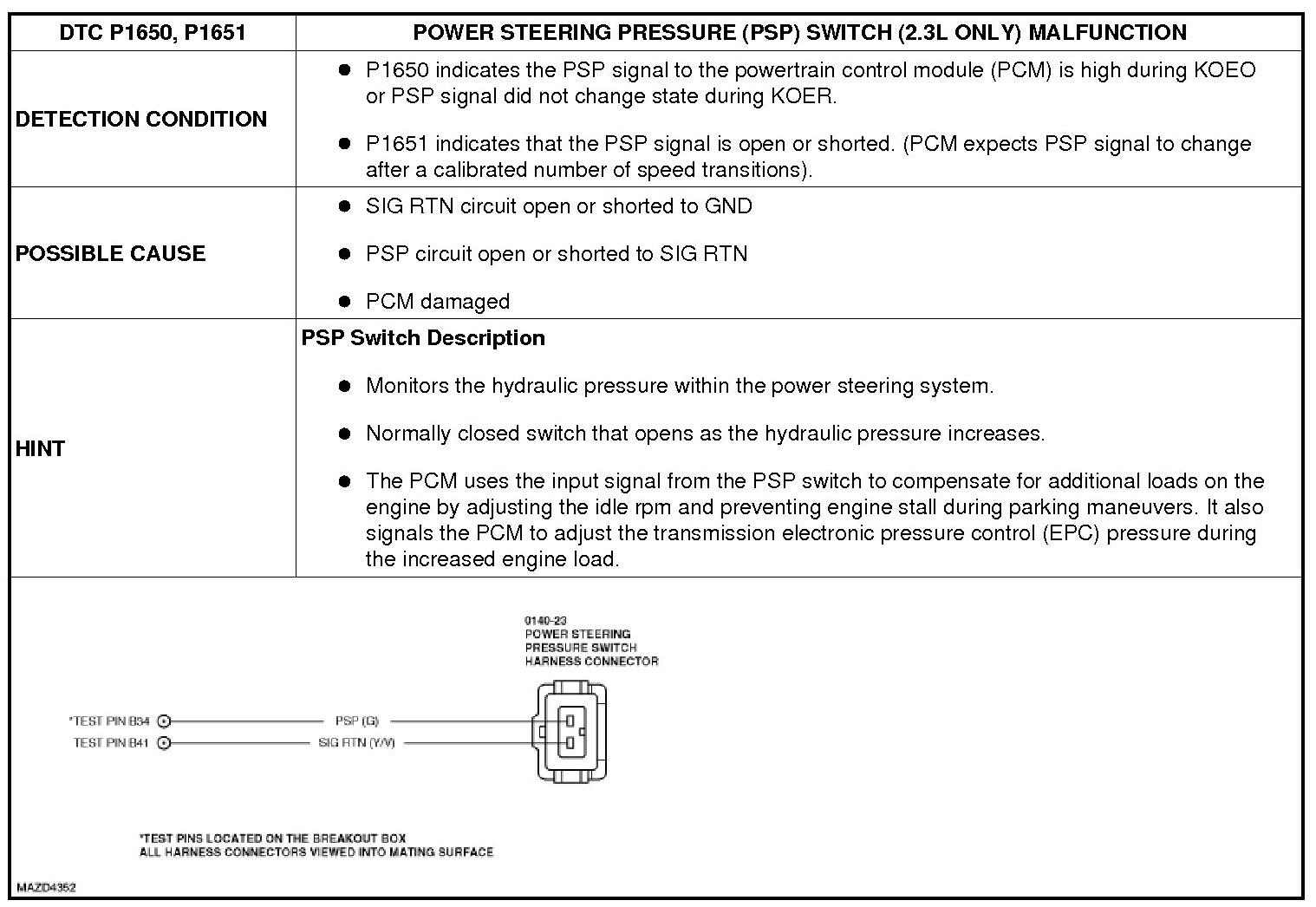

POWER STEERING PRESSURE (PSP) SWITCH (2.3L ONLY) MALFUNCTION

Detection Condition/Possible Cause:





Step 1-Step 3:





Step 4-Step 6:
