Transmission Position Sensor/Switch: Testing and Inspection




DIGITAL TRANSMISSION RANGE (TR) SENSOR

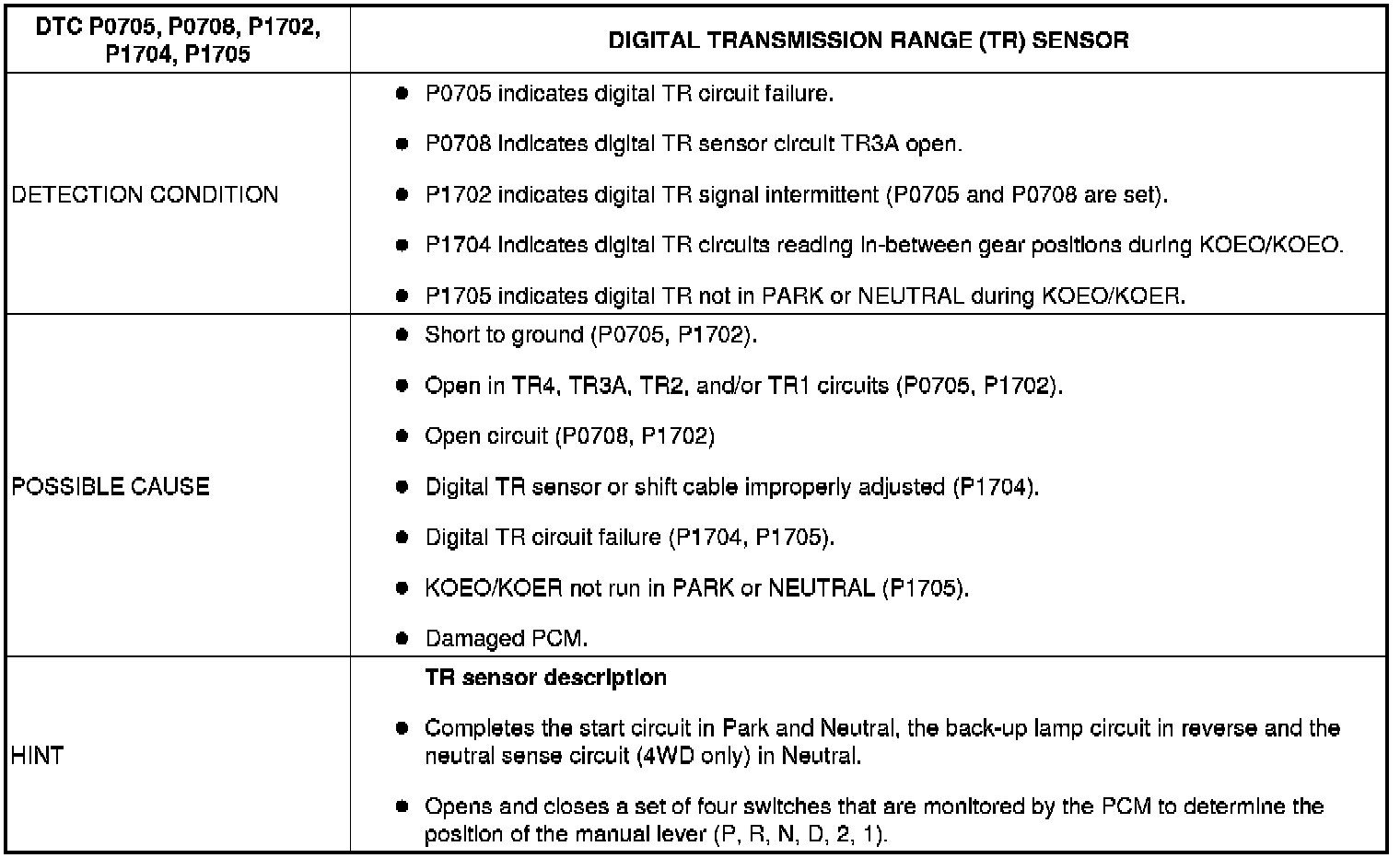

Detection Condition/Possible Cause:

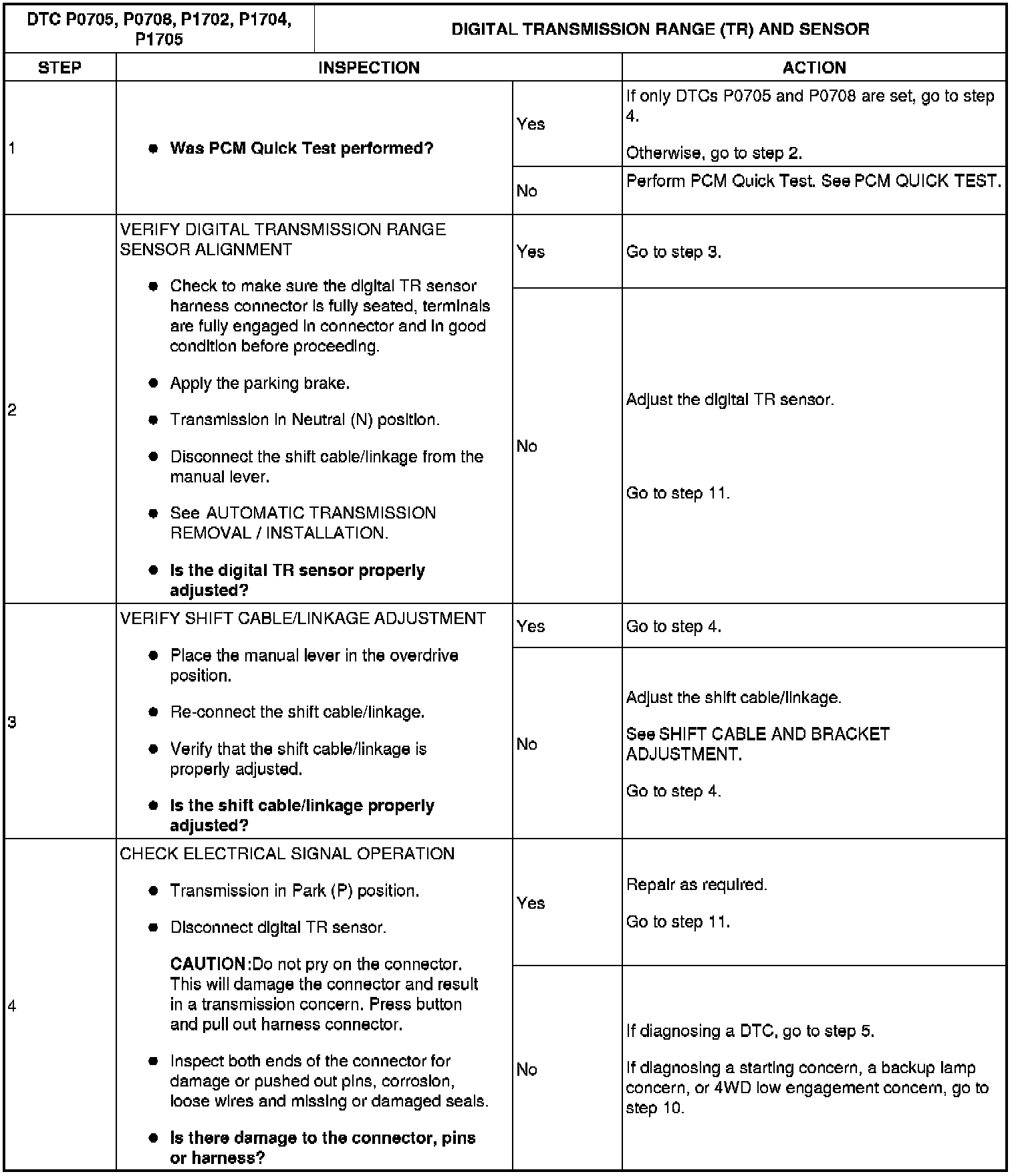

Step 1-Step 4:

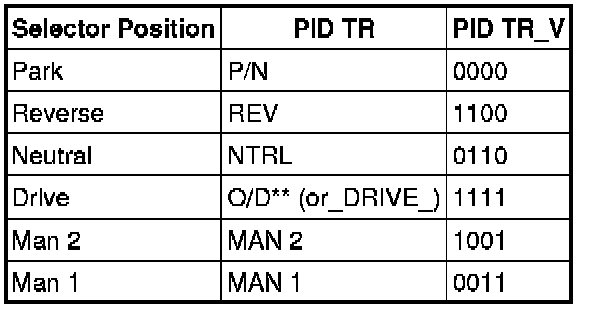

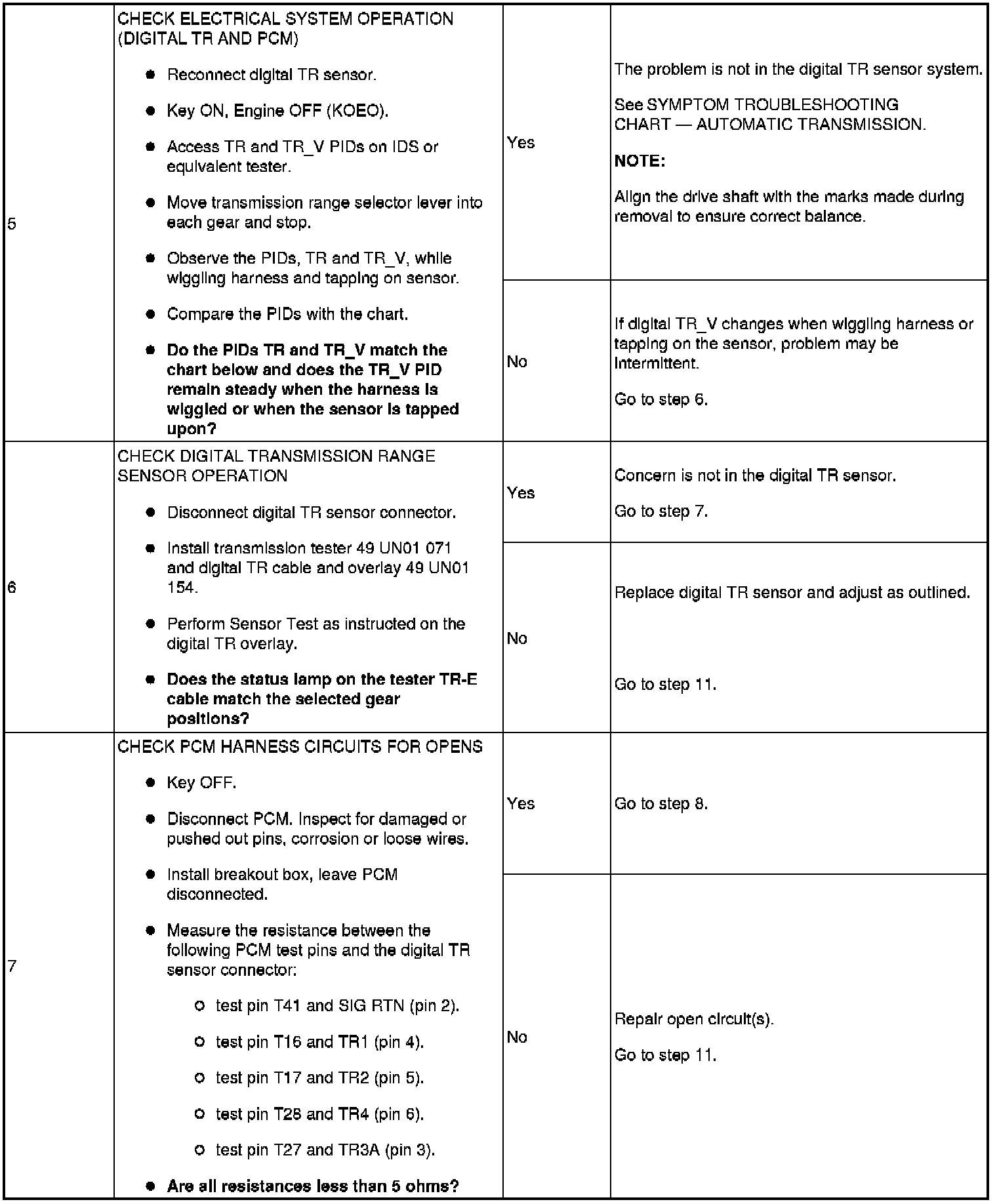

Step 5-Step 7:

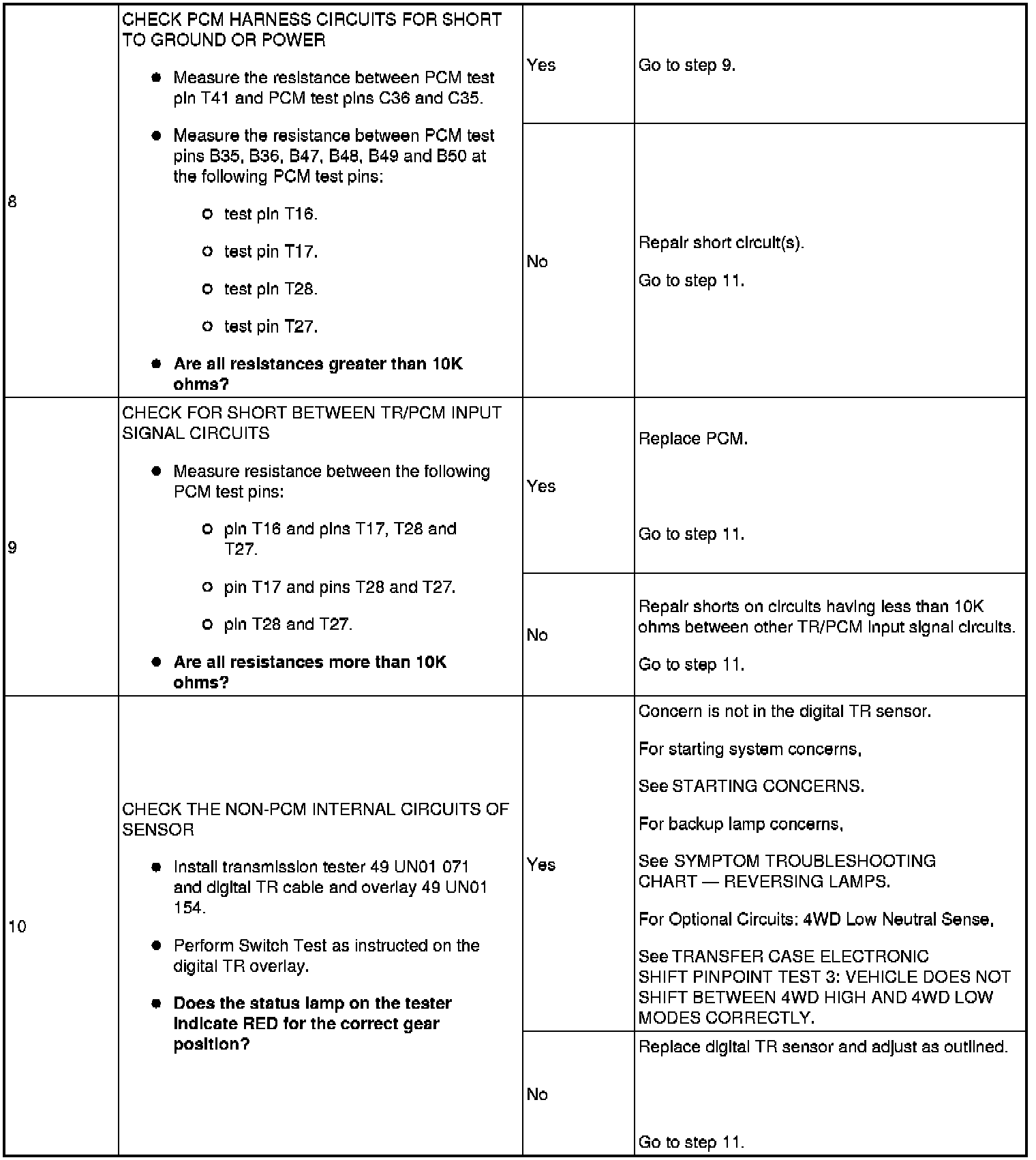

Step 8-Step 10:

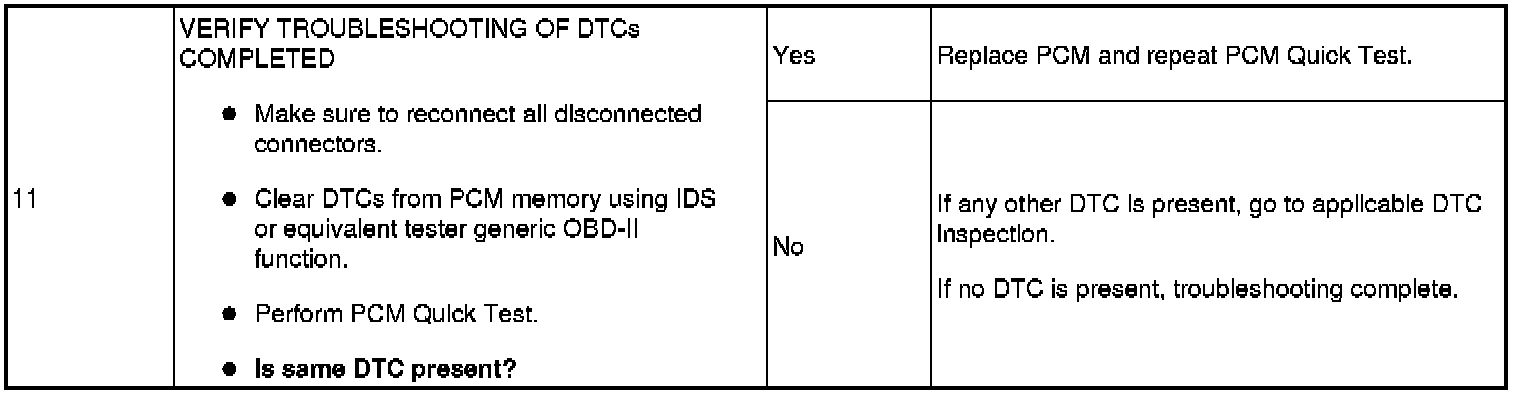

Step 11:
