EGR Tube: Service and Repair

-
EGR VALVE TUBE REMOVAL / INSTALLATION - 2.3L

1. Remove the intake manifold. See - Service and Repair.

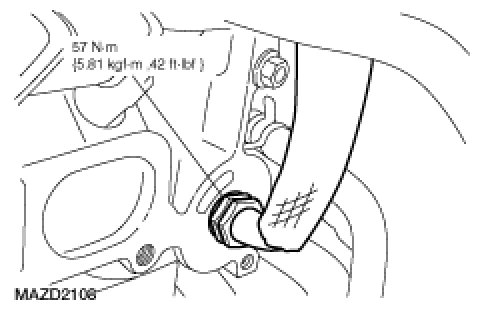

1. Remove the EGR tube.

2. To install, reverse the removal procedure
