Key-In-Ignition Warning Switch

KEY-IN-IGNITION WARNING SWITCH









Removal and Installation

1. Remove the ignition lock cylinder. See - Ignition Lock Cylinder - Functional or see - Ignition Lock Cylinder - Non Functional.

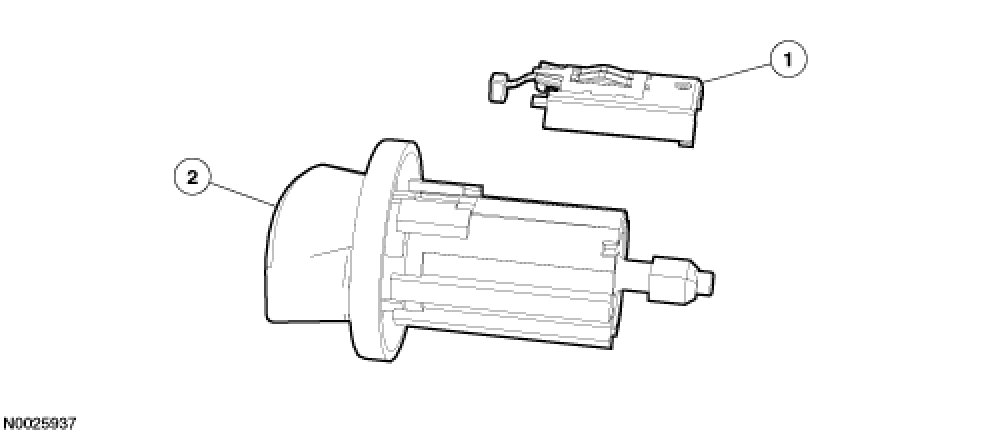

1. Remove the key-in-ignition warning switch.

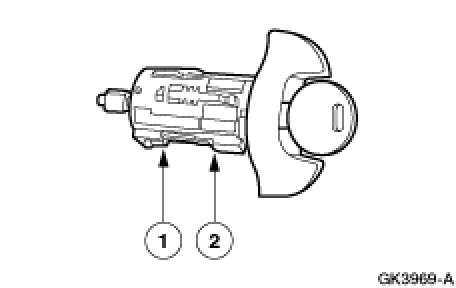

1 Pry the clip downward.
2 Release the key-in-ignition warning switch from the rear of the ignition lock cylinder.

2. To install, reverse the removal procedure.
