Wiper Switch: Service and Repair

MULTIFUNCTION SWITCH









Removal and Installation

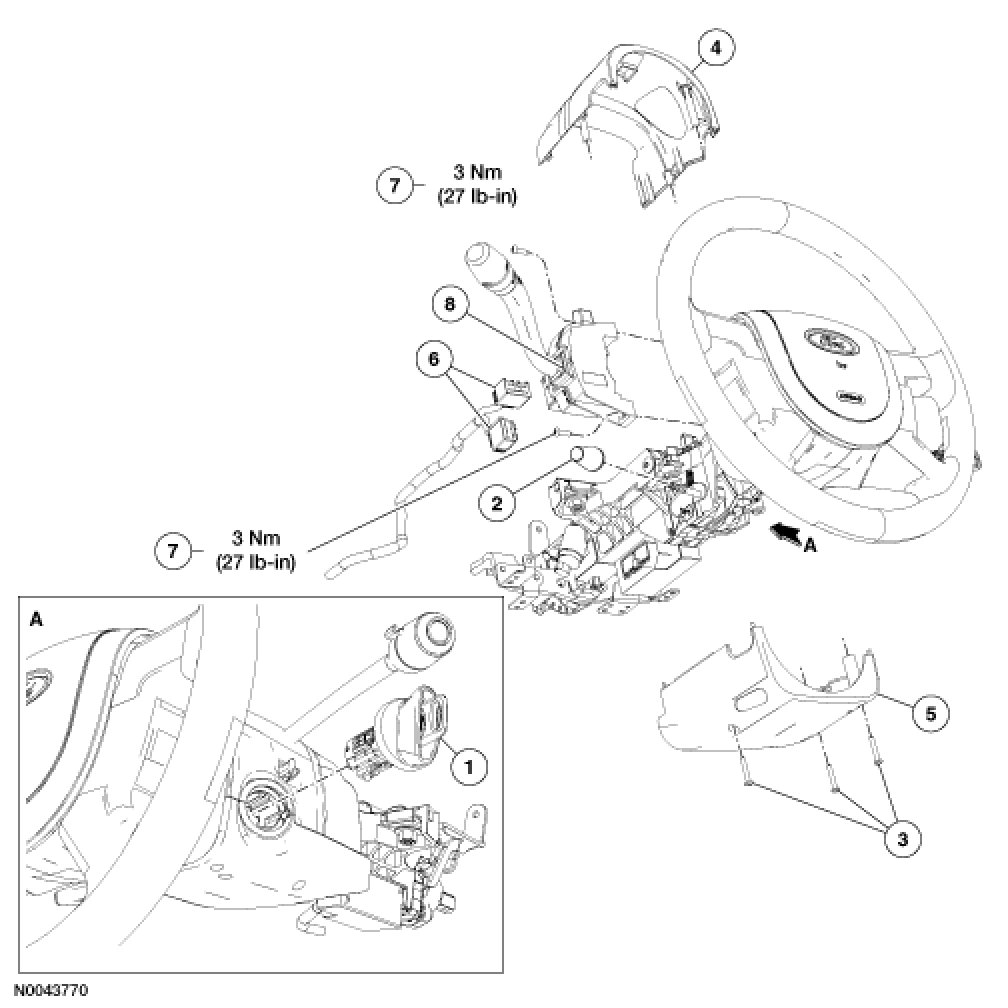

1. Disconnect the negative battery cable. See Procedures.

2. Remove the ignition switch lock cylinder.

- Insert the ignition key into the ignition switch lock cylinder and turn to the RUN position.
- Push the ignition switch lock cylinder release tab with a punch while pulling out the ignition switch lock cylinder.

3. If equipped, remove the tilt release lever/ handle.

4. Remove the 3 steering column cover screws and upper and lower steering column shrouds.

5. Disconnect the multi-function switch electrical connectors.

6. Remove the 2 multi-function switch screws and the multi-function switch.

- To install, tighten to 3 N-m (0.3 kgf-m, 27 in-lbf).

7. To install, reverse the removal procedure.
