Ignition Key Release Button: Notes

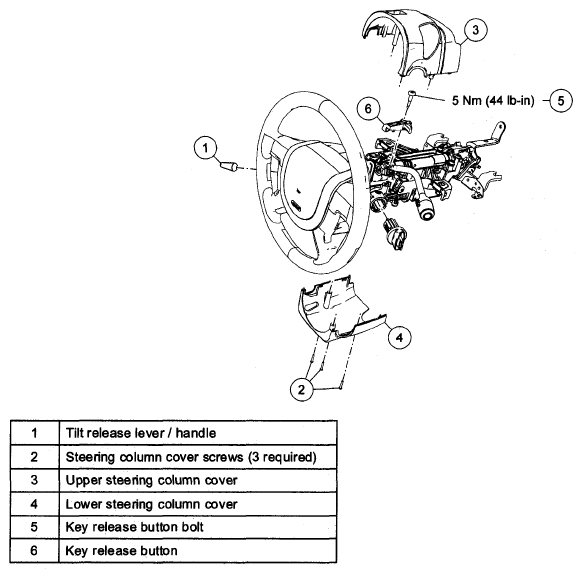

Fig 1: Ignition Key Release Button Replacement Components With Torque Specifications
G04930825Courtesy of MAZDA MOTORS CORP.
