Ignition Switch: Notes

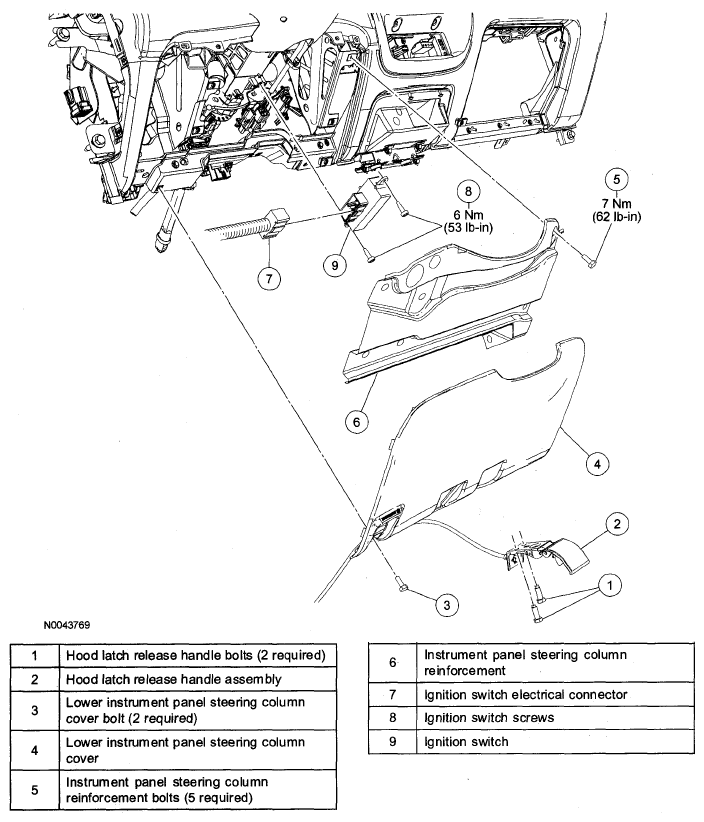

Fig 1: Exploded View Of Ignition Switch With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
