Steering Column: Notes

NOTE:
  • Automatic transmission shown in illustration, manual transmission similar.

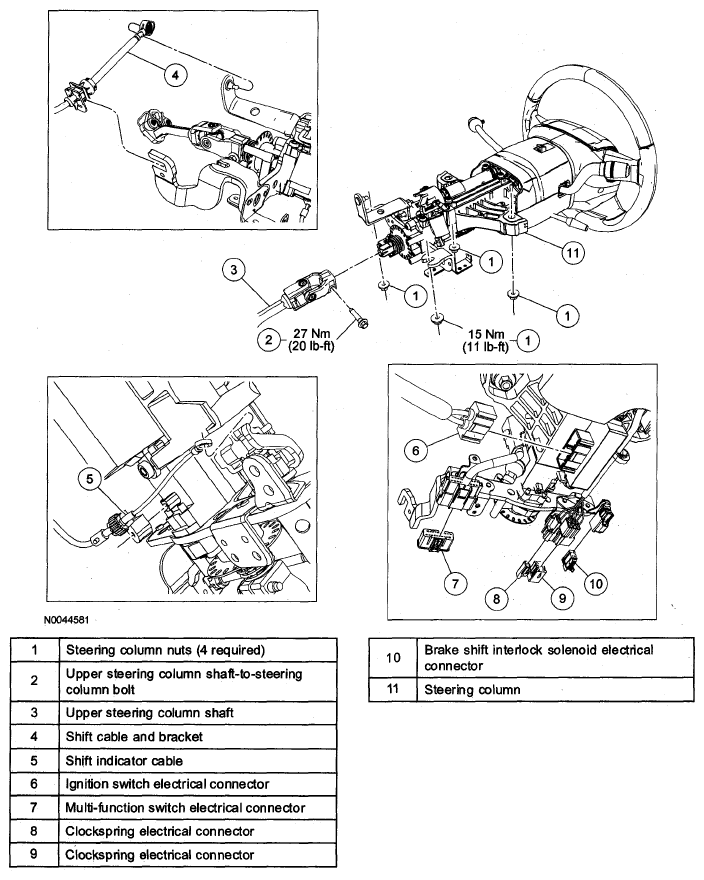

Fig 1: Steering Column Replacement Components With Torque Specifications
G04930704Courtesy of MAZDA MOTORS CORP.
