Body and Frame: Testing and Inspection
-

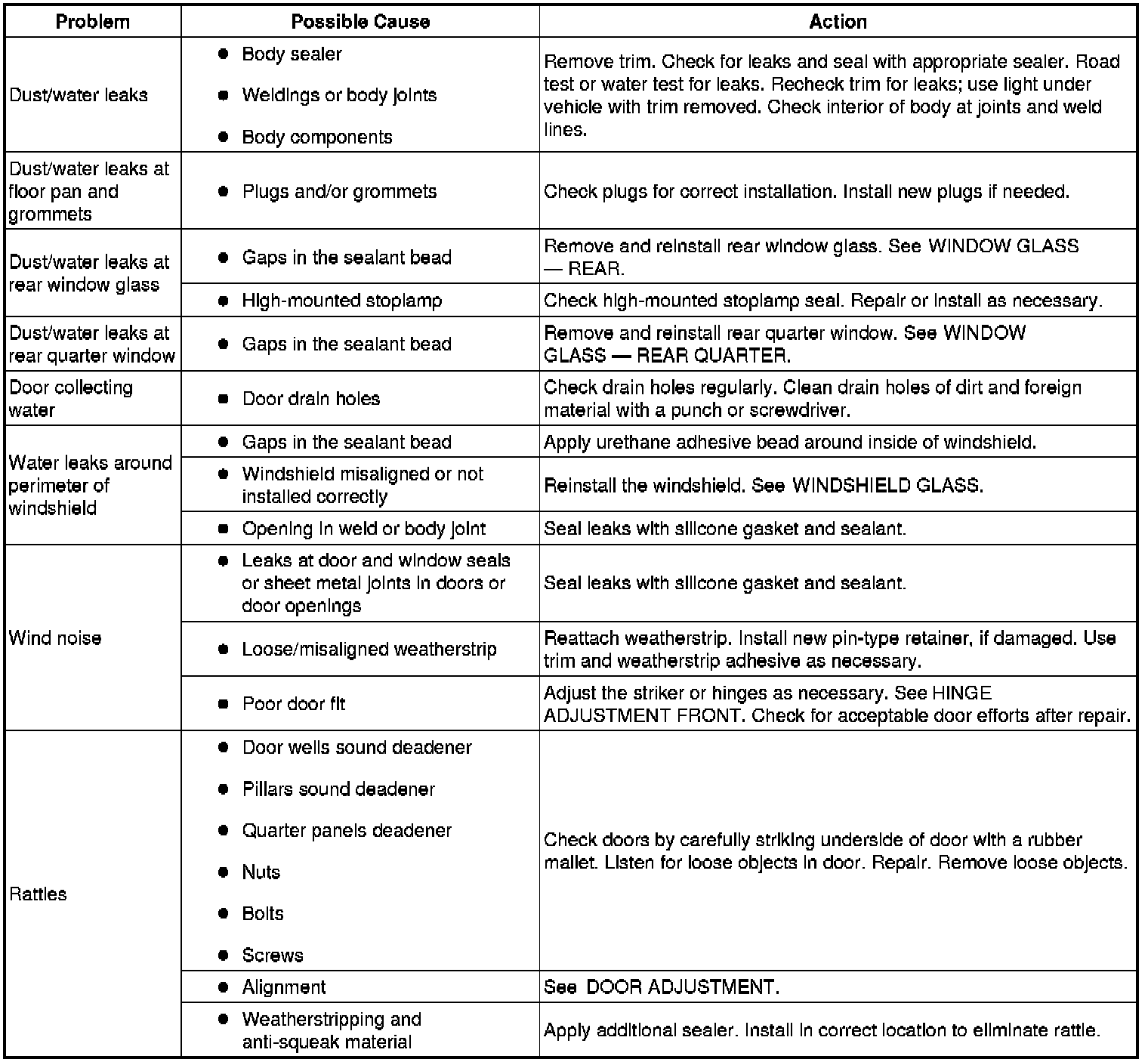

SYMPTOM TROUBLESHOOTING CHART - BODY SYSTEM
Symptom Troubleshooting Chart:
