Home >> Mazda >> 2009 >> B4000 V6-4.0L >> Repair and Diagnosis >> Diagrams >> Components >> Four-Wheel Drive Control Module
April 5, 2026: LEMON Manuals is launched! Read the announcement.

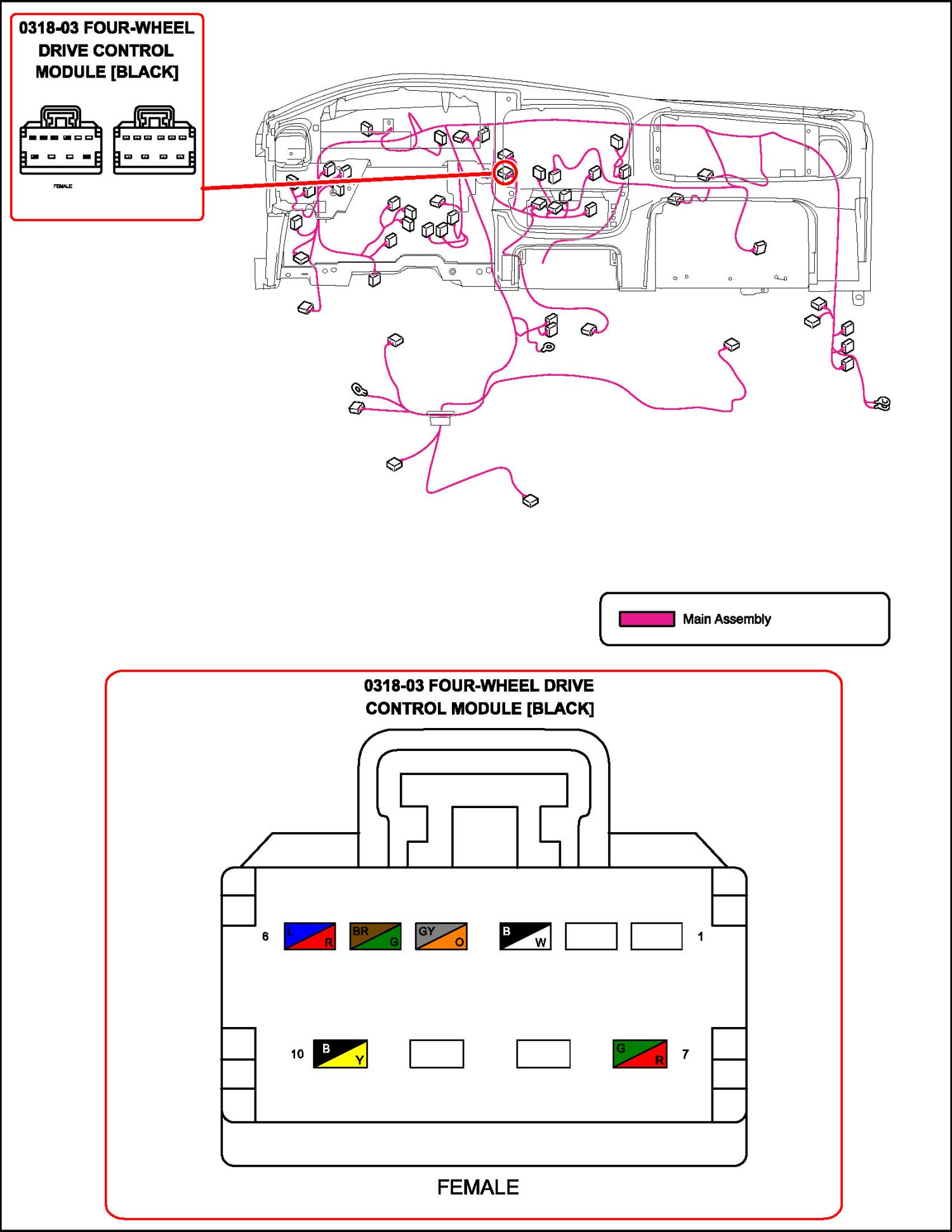

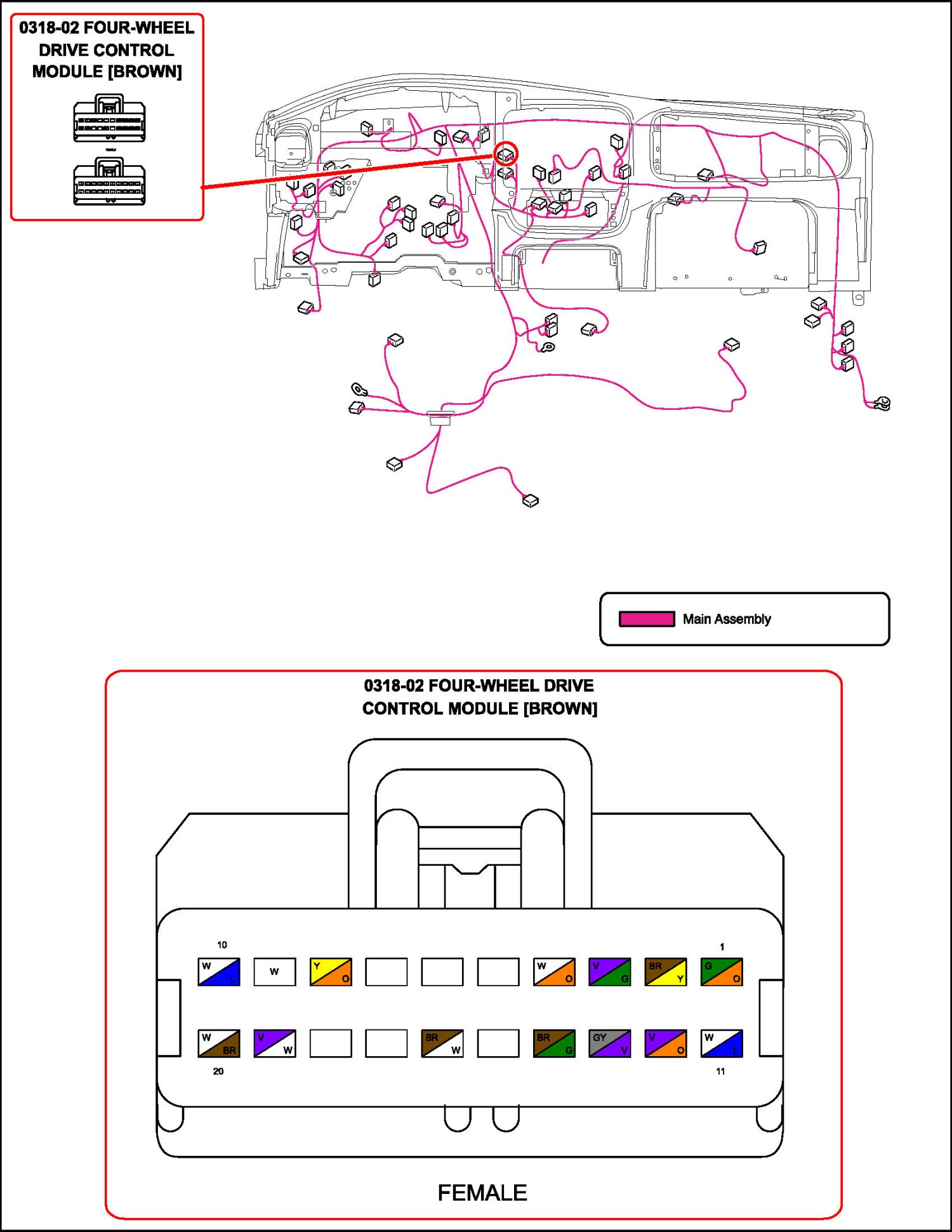

Four-Wheel Drive Control Module

Four-Wheel Drive Control Module:



Four-Wheel Drive Control Module:
