Camshaft Position Sensor: Service and Repair



-
CAMSHAFT POSITION (CMP) SENSOR REMOVAL / INSTALLATION - 4.0L









Removal and Installation

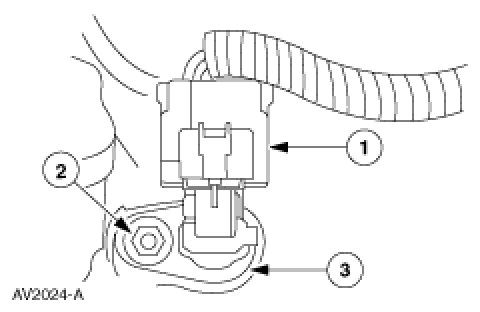

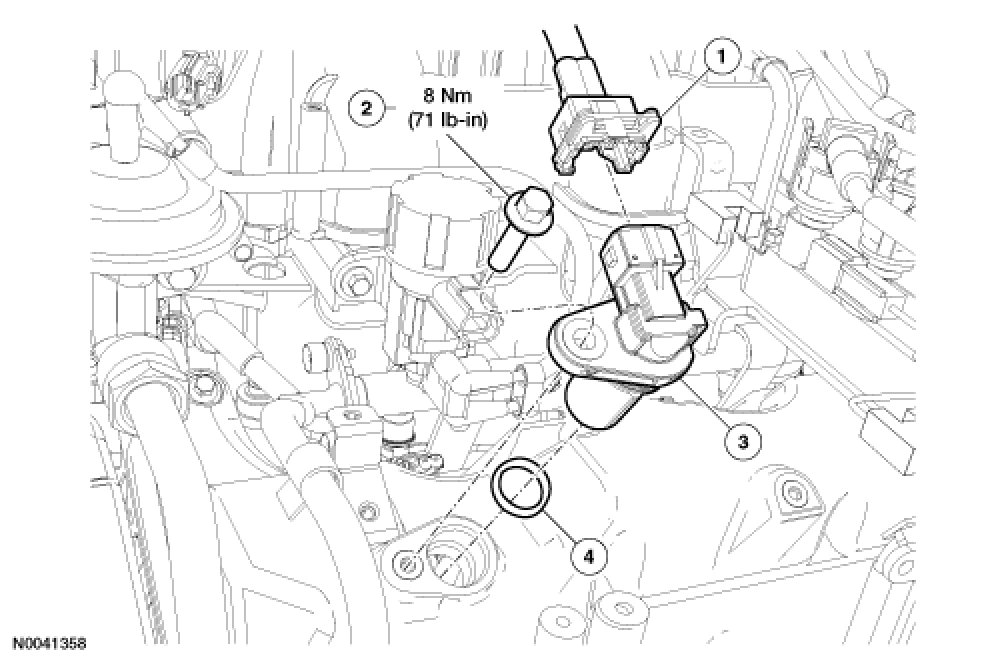

1. Remove the camshaft position (CMP) sensor.
a. Disconnect the electrical connector.

b. Remove the bolt.

c. Remove the sensor.

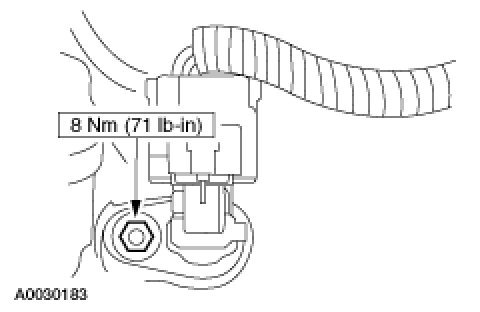

1. To install, reverse the removal procedure.
