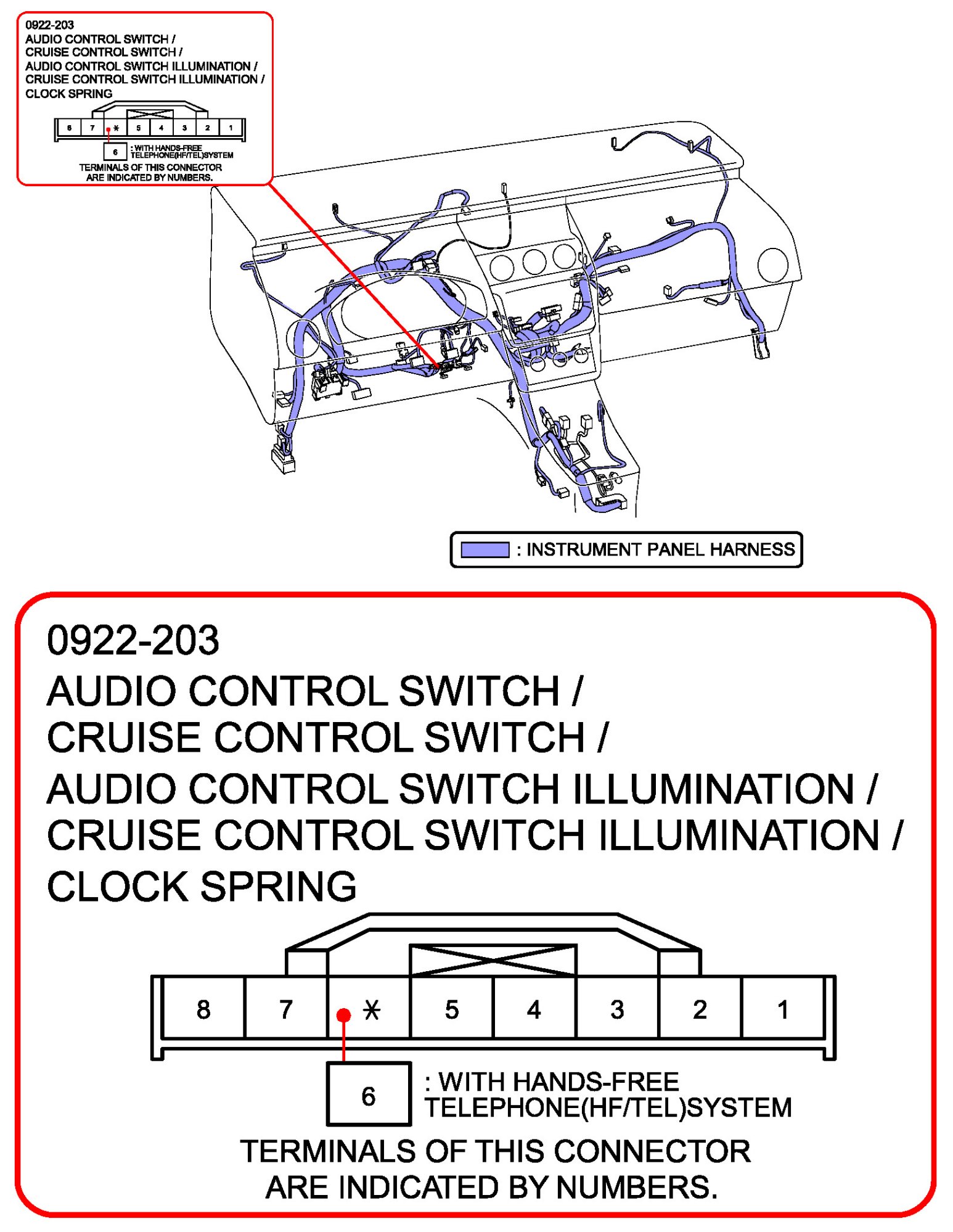

Audio Control Switch/Cruise Control Switch/Audio Control Switch Illumination/Cruise Control Switch Illumination/Clock Spring

Audio Control Switch/Cruise Control Switch/Audio Control Switch Illumination/Cruise Control Switch Illumination/Clock Spring:
