Door Switch LF
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Door Switch LF

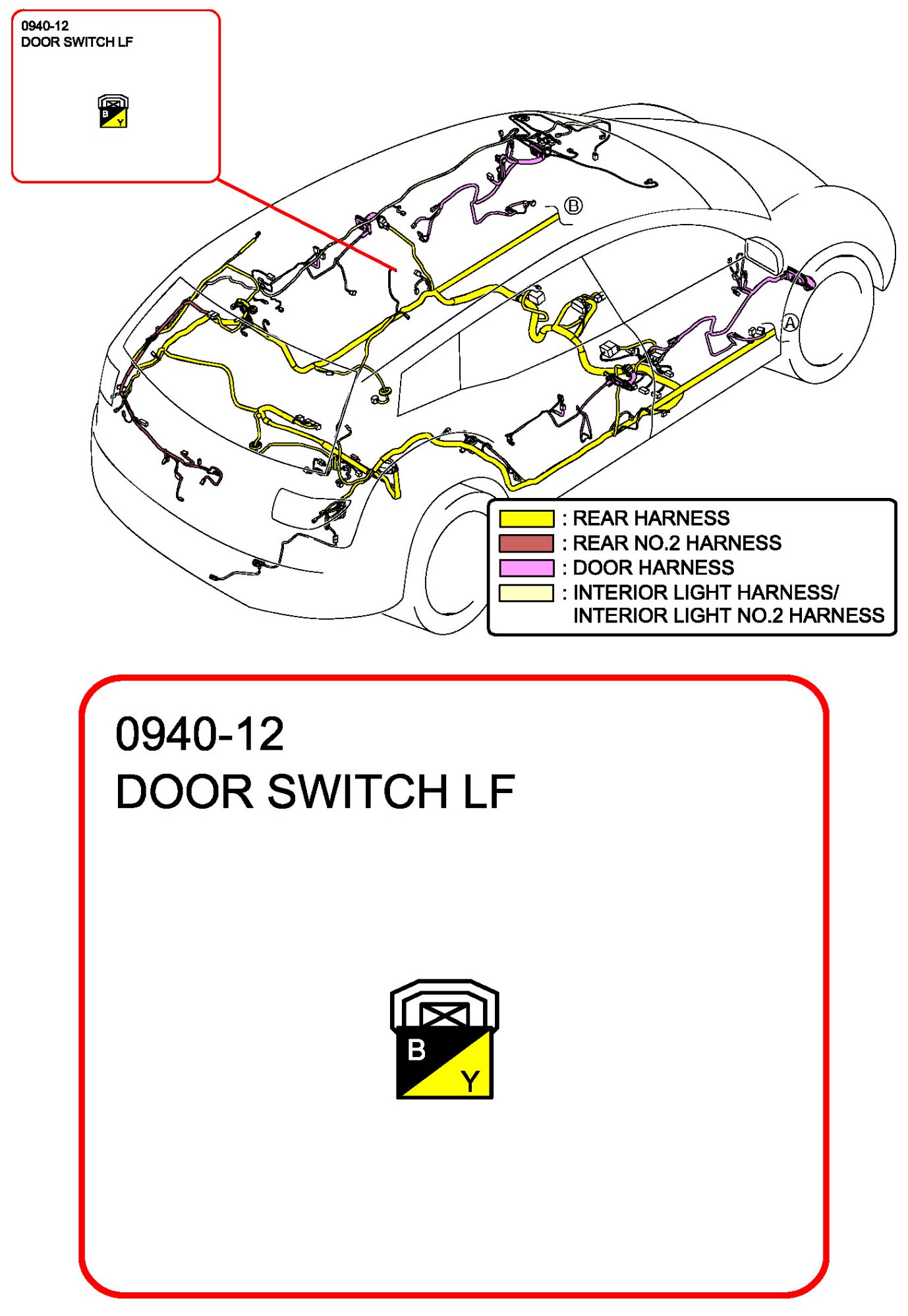

Door Switch LF:
Door Switch RF:
Door Switch LR:

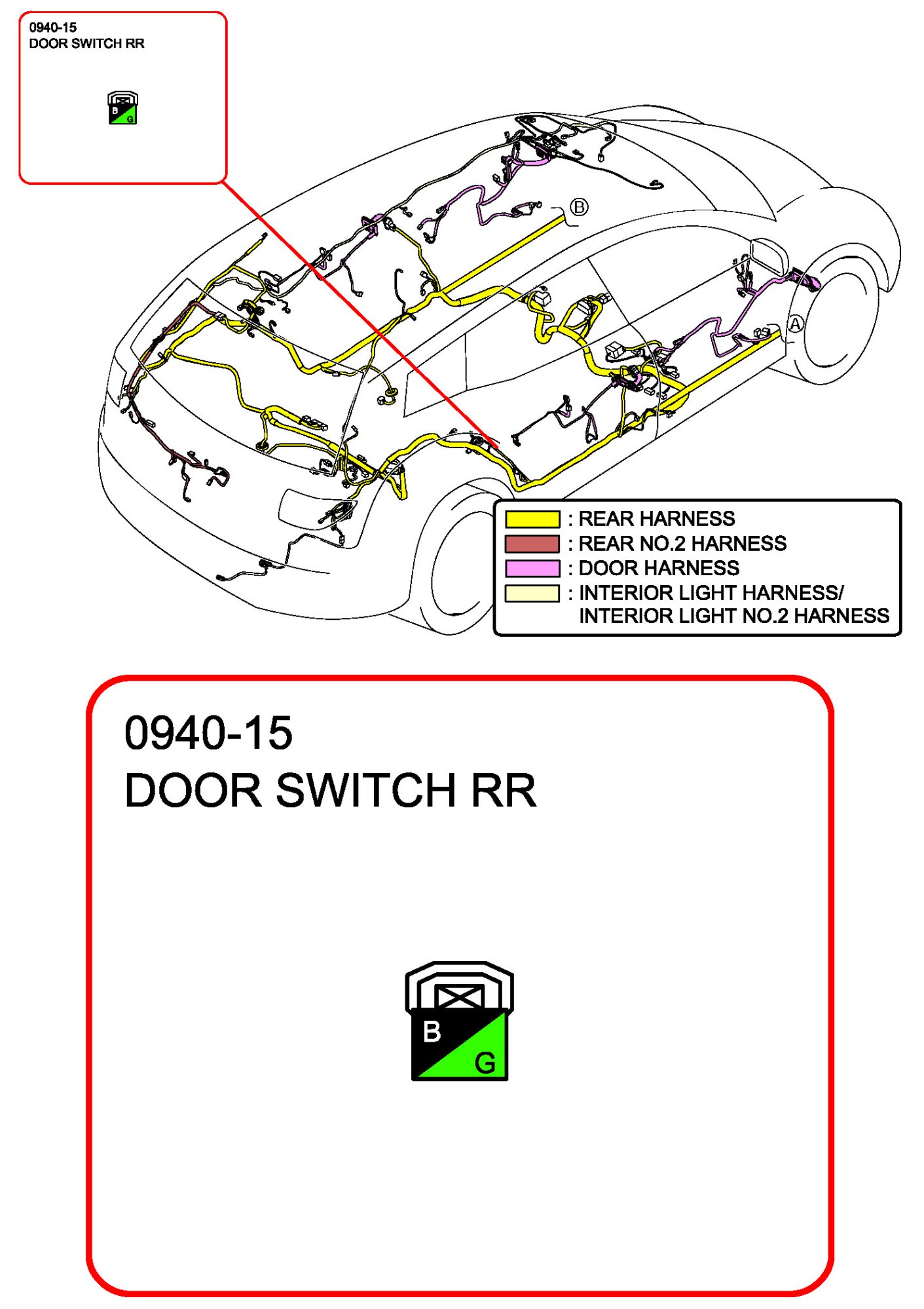

Door Switch RR:
