Cabin Temperature Sensor / Switch: Testing and Inspection

PASSENGER COMPARTMENT TEMPERATURE SENSOR INSPECTION

1. Measure the temperature around the passenger compartment temperature sensor.

2. Measure the resistance between terminals of the passenger compartment temperature sensor.

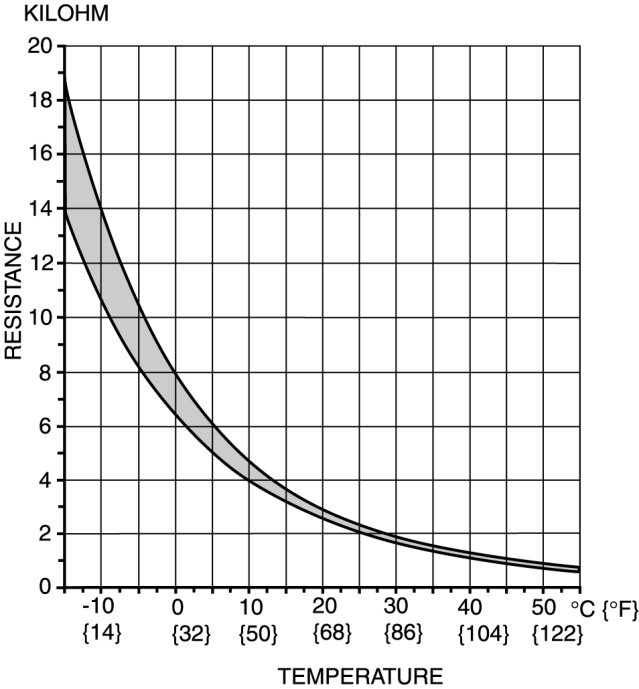

- If the resistance is not as shown in the graph, replace the passenger compartment temperature sensor.
