Transverse Member Removal/Installation




TRANSVERSE MEMBER REMOVAL/INSTALLATION

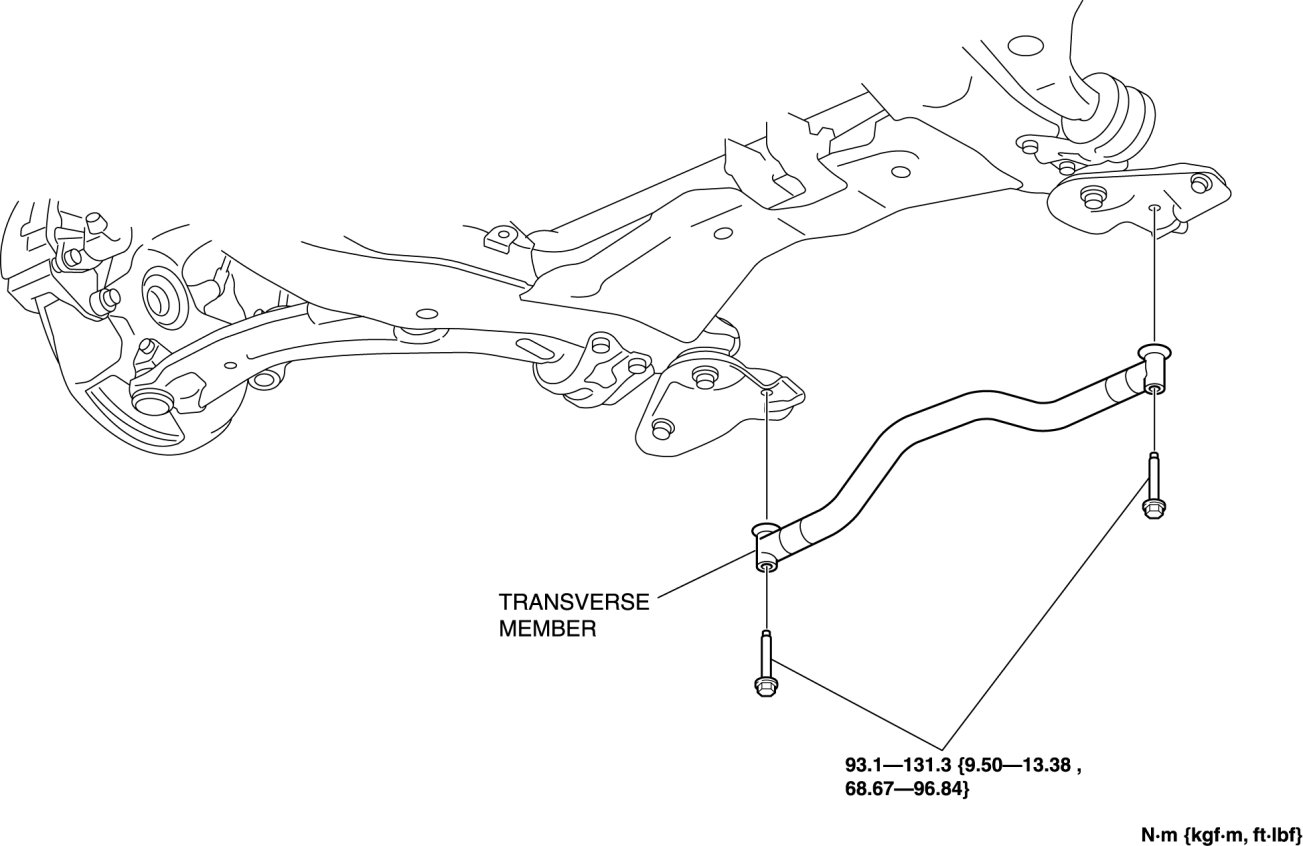

1. Remove the transverse member.

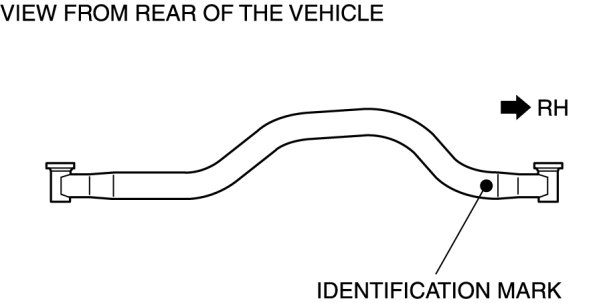

2. Install the transverse member with the identification mark facing the rear right of the vehicle.
