Vehicle Lifting: Service and Repair

JACKING POSITIONS, VEHICLE LIFT (2 SUPPORTS) AND SAFETY STAND (RIGID RACK) POSITIONS

Jacking Positions

WARNING:
- Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.

- Use safety stands to support the vehicle after it has been lifted.

Front

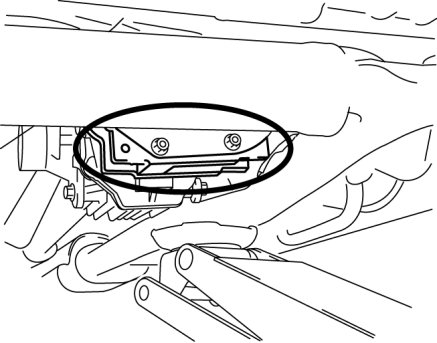

- Near the center or the front crossmember.






Rear

2WD

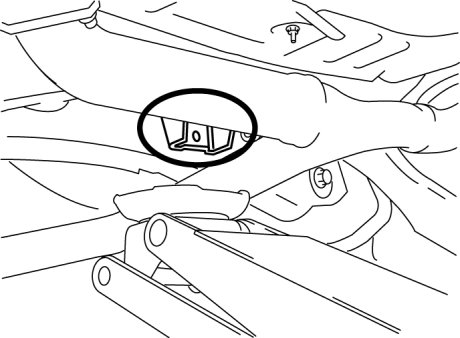

- Near the center of the rear crossmember.






AWD

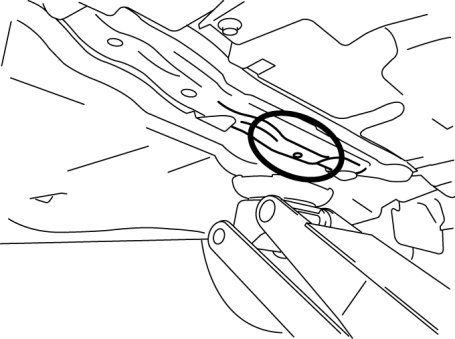

- At the center of the rear differential.






Vehicle Lift Positions

Front and rear

WARNING:
- Lifting a vehicle that is not stabilized is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of the support at the end of the arm of the lift.

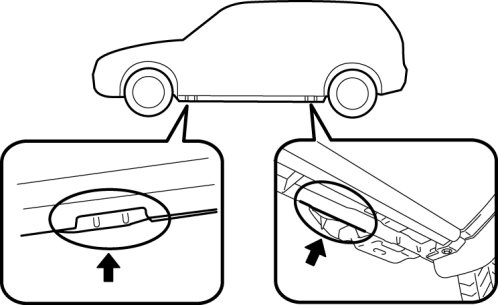

- Both sides of the vehicle, on side sills.






Safety Stand Positions

Front and rear

- Both sides of the vehicle, on side sills.
