Auto Light/Wiper Control Module Inspection

AUTO LIGHT/WIPER CONTROL MODULE INSPECTION

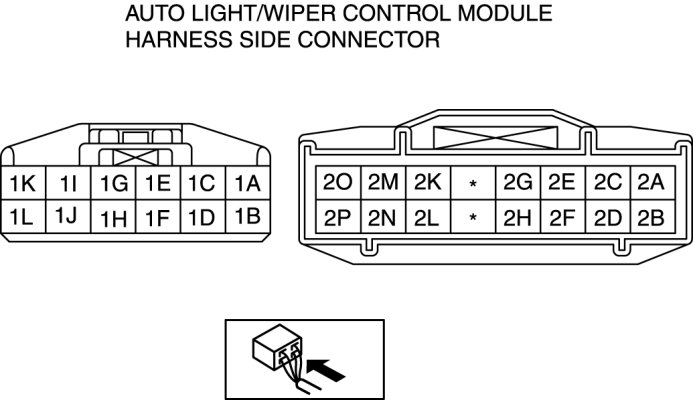

1. Measure the voltage at the auto light/wiper control module terminals as indicated below.

Terminal Voltage List (Reference)

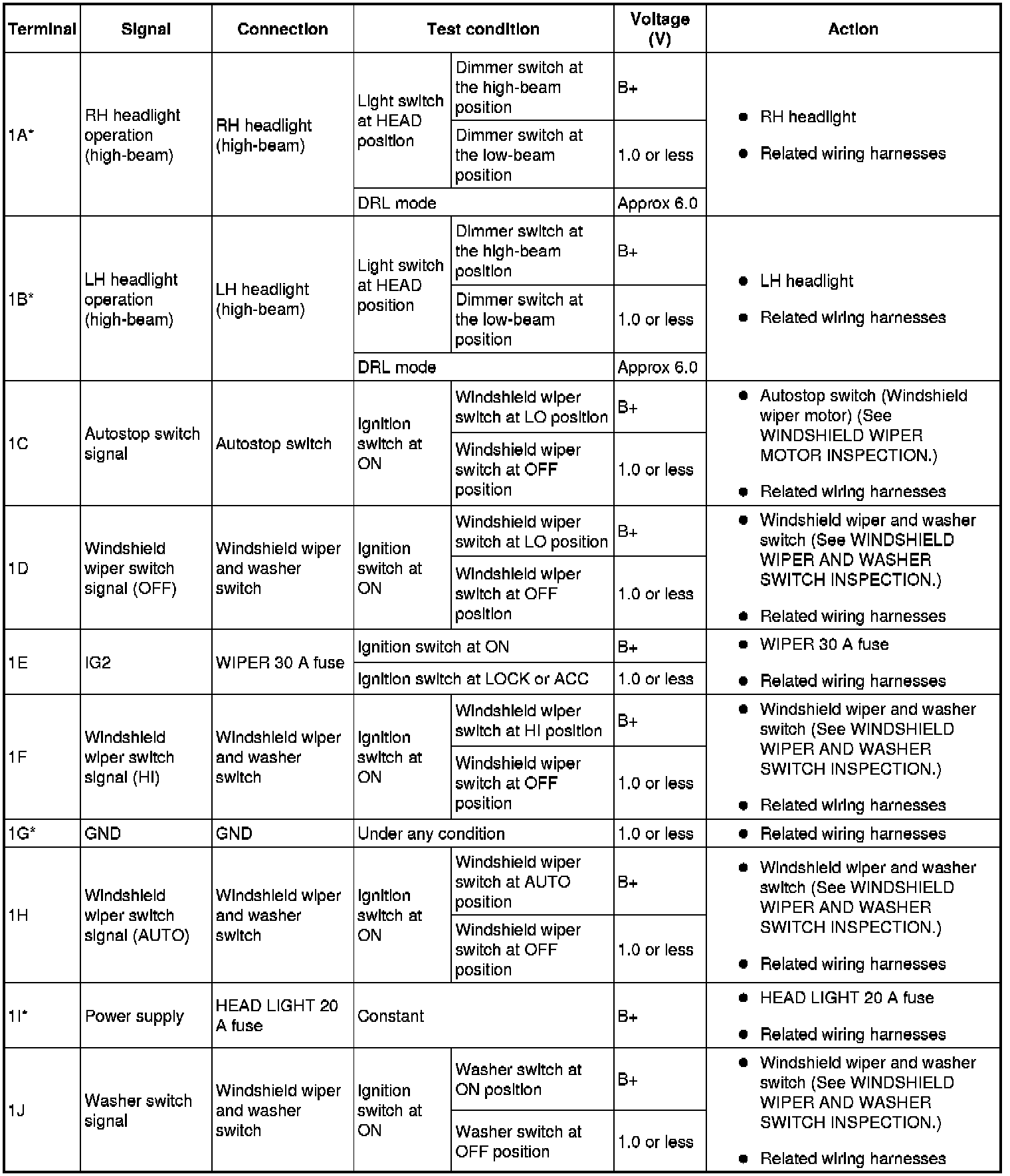

Terminal Voltage List (Reference) (Part 1):

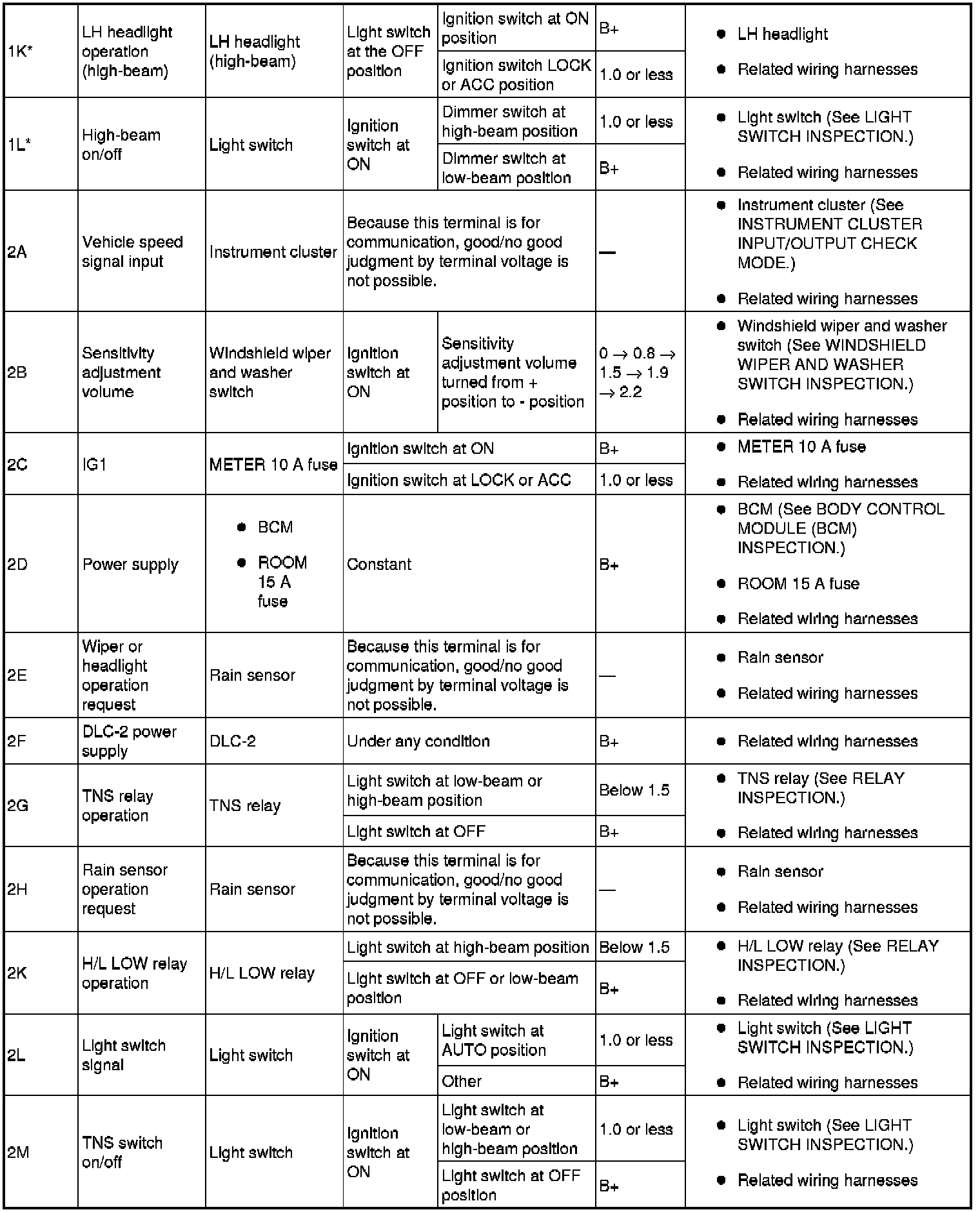

Terminal Voltage List (Reference) (Part 2):

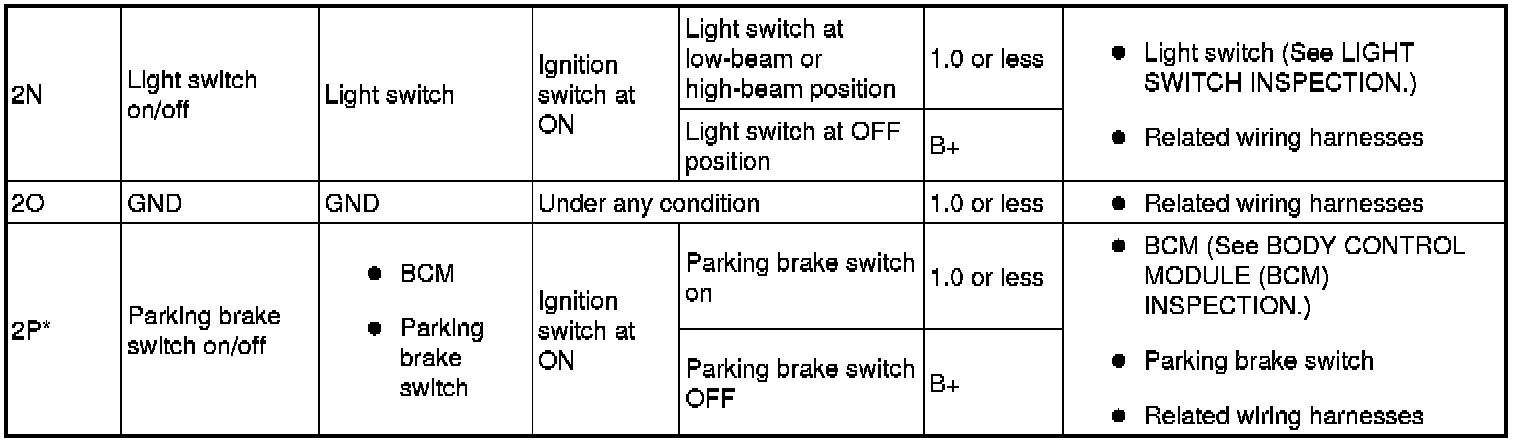

Terminal Voltage List (Reference) (Part 3):

*
For vehicles with DRL only.
